Product description
UT673PV – Solar MPPT Meter
The UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing the following:
- Maximum power
- Peak power voltage
- Peak power current
- Open circuit voltage
- Short circuit current
Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.
Please note, the maximum voltage is 60V, it is not suitable to measure thin film solar panels with high output voltage.
Featuring a spacious screen and automatic measurement capabilities, this UT673PV solar MPPT meter conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.
Features:
Certifications (UT673PV series only): CE, cETLus, RoHS
- Maximum power test (Pmax) 5～800W
- Peak power voltage (Vmp) 12～60V
- Peak power current (Imp) 0～35A
- Open circuit voltage (Voc) 12～60V
- Short circuit current (Isc) 0～35A
- Large screen and multiple result display
- No batteries needed, powered by the solar panel

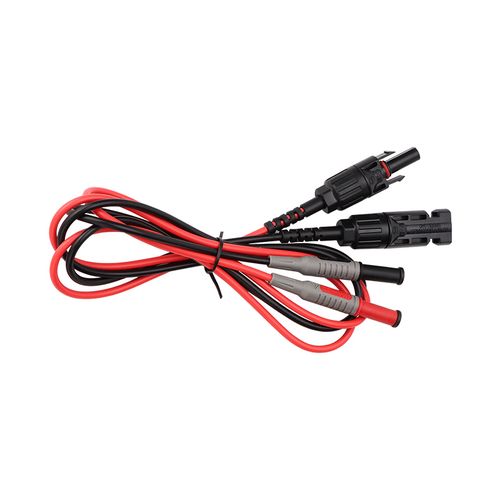

- Equipped with MC4 test lead
- Portable and convenient
· Specifications:
|
Specification |
||
|
Max power measurement |
5～800W |
±(1.0%＋10) |
|
Max power current(DC) |
0～35A |
±(1.5%＋5) |
|
Max power voltage(DC) |
12～60V |
±(1.5%＋5) |
|
Open circuit current(DC) |
12～60V |
±(1.5%＋5) |
|
Short circuit current(DC) |
0～35A |
±(1.5%＋5) |
|
General Features |
||
|
Display |
Large LCD (52 * 66mm) |
|
|
Reverse polarity |
√ |
|
|
Over voltage protection |
√ |
|
|
Over current protection |
√ |
|
|
Over temperature protection |
√ |
|
|
Over power protection |
√ |
|
|
Manual/Auto MPPT test |
√ |
|
|
Data hold |
√ |
|
|
Power supply |
No battery needed, powered by solar panel |
|
|
Ovecategory |
CAT 0 60V |
|
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T UT673PV Solar MPPT Meter: Your Essential Tool for Solar Panel Testing
The UNI-T UT673PV is a professional MPPT tester, also known as a solar MPPT meter or maximum power point tracker tester, designed for efficient and accurate testing of solar panels. This device, categorized under Indicators, Voltage and Continuity Testers, is a must-have for photovoltaic manufacturers, installers, and maintenance professionals.
Key Features and Benefits
- Wide Power Range: Tests solar panels with power ranging from 5W to 800W.
- Comprehensive Measurements: Accurately measures maximum power (Pmax), peak power voltage (Vmp), peak power current (Imp), open circuit voltage (Voc), and short circuit current (Isc).
- User-Friendly Operation: Offers both manual and automatic measurement modes for ease of use.
- Large LCD Display: Displays multiple readings simultaneously for quick analysis.
- Portable and Lightweight: Designed for convenient on-site testing.
- No Battery Required: Powered directly by the solar panel under test, eliminating the need for batteries.
- Safety Features: Includes reverse polarity, over-voltage, over-current, over-temperature, and over-power protection.
- Includes MC4 Connectors: Equipped with MC4 connectors for easy connection to solar panels.
Why Choose the UNI-T UT673PV?
This MPPT tester provides a comprehensive solution for evaluating the performance of solar panels. Its accuracy, ease of use, and safety features make it an invaluable tool for professionals and hobbyists alike. The portable design and battery-free operation ensure convenient and efficient testing in various locations.
Specifications
| Parameter | Value |
|---|---|
| Power Range (Pmax) | 5-800W |
| Current Range (Imp/Isc) | 0-35A |
| Voltage Range (Vmp/Voc) | 12-60VDC |
Order your UNI-T UT673PV MPPT tester today and experience the difference!
