Product description
| Specifications | Range | Best Accuracy |
| Model | UT210E | |
| AC Current (A) | 2A/20A/100A | ±（2.5%+5) |
| DC Current (A) | 2A/20A/100A | ±（2%+3) |
| AC Voltage (V) | 2V/20V/200V/600V | ±（1%+3) |
| DC Voltage (V) | 200mV/2V/20V/200V/600V | ±（0.7%+3) |
| Resistance (Ω) | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ | ±（1%+2) |
| Capacitance (F) | 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF | ±（4%+5) |
| Features | ||
| Display Count | 2000 | |
| Auto Range | √ | |
| Jaw Capacity | 17mm | |
| True RMS | √ | |
| Diode | Around 3.0V | √ |
| NCV | √ | |
| Data Hold | √ | |
| Zero Mode | √ | |
| LCD Backlight | √ | |
| Auto Power Off | Around 15 Minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤2.5V | √ |
| Input Protection | √ | |
| Input Impedance for DCV | ≥10MΩ | √ |
| General Characteristic | ||
| Power | AAA 1.5V × 2 | |
| LCD Size | 39.3mm × 26.5 mm | |
| Product Net Weight | 170g | |
| Product Size | 175mm × 60mm × 33.5mm | |

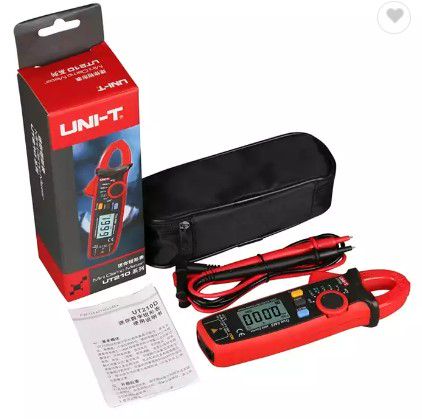

| Standard Accessories | Batteries, Test Lead | |
Useful information
Specifications
Experimental product description generated by artificial intelligence

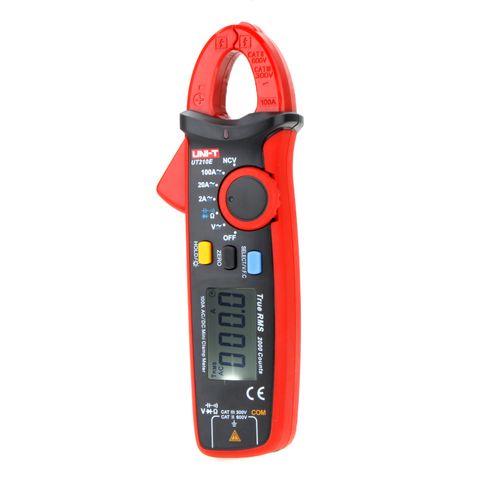

UNI-T UT210E Current Clamp Meter: A Comprehensive Guide
The UNI-T UT210E CATIII, CATIV continuity buzzer, diode, and resistance meter is a versatile and reliable tool for electricians and electrical engineers. This mini clamp meter combines high reliability, safety, precision, and a compact design, making it ideal for various applications.
Key Features and Functions
- AC/DC Current Measurement: Accurately measures both AC and DC currents with a maximum range of 100A.
- Voltage Measurement: Measures AC and DC voltages.
- Resistance Measurement: Tests resistance values.
- Continuity Buzzer: Quickly identifies continuous circuits.
- Diode Test: Checks the functionality of diodes.
- Non-Contact Voltage Detection (NCV): Detects the presence of AC voltage without physical contact.
- Data Hold Function: Freezes readings on the display for easy viewing.
- Backlight: Improves visibility in low-light conditions.
- Auto Power-Off: Conserves battery life.
- Safety Standards: Complies with relevant safety standards, including CATIII 300V and CATIV.
Applications
The UNI-T UT210E is suitable for a wide range of applications, including:
- Electrical maintenance and troubleshooting
- Automotive electrical system testing
- Industrial electrical work
- HVAC/R system diagnostics
- General electrical measurements
Why Choose the UNI-T UT210E?
The UNI-T UT210E stands out due to its:
- Accuracy and Reliability: Delivers precise and dependable measurements.
- Compact Design: Easy to handle and maneuver in tight spaces.
- Safety Features: Provides multiple safety features to protect the user.
- Versatility: Performs a variety of measurements with a single tool.
- Ease of Use: Simple and intuitive operation.
This UNI-T clamp meter is a valuable asset for any professional or hobbyist working with electrical systems. Its combination of features, accuracy, and safety makes it a top choice for various electrical testing needs.
