Product description
AC/DC voltage 6/12/24/50/120/230/400/690V; Phase rotation 100~690V; Frequency 50-400Hz; Continuity buzzer 0-100kΩ; RCD 230V(50-400Hz); IP65; Backlight, Auto range; Polarity detection; ect.; LCD 12x23mm LED; 2 x 1.5V battery (AAA)

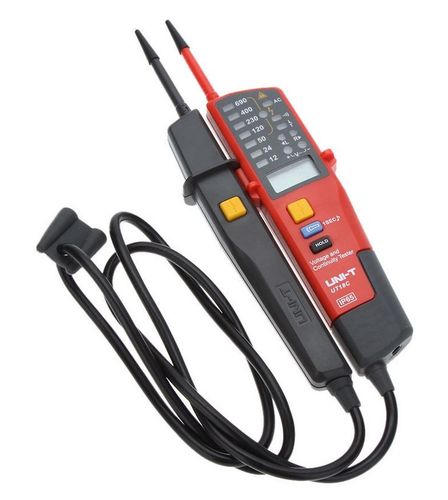

Voltage and continuity tester model UT18C
Prekinis ženklas: Uni-t
Voltage: 12 V/24 V/50 V/120 V/230 V/400 V/690 V; (1,5%+3)
Phase Rotation Test:
- Operating Voltage: 100 V-690 V
- Frequency 50 Hz-60 Hz
Single Lead(L2)Voltage Detection:
- Operating Voltage 100 V-690 V
- Frequency 50 Hz-400 Hz
Continuity Test:
- Resistance: 0-100 kOhm
- Beeper and LED light Indicator
RCD Test: Operating Voltage 230 V (50 Hz-400 Hz)
Polarity Detection: Positive and Negative
Self-inspection: All LED or LCD indicator
No Power test: Operating voltage 50 VAC/120 VDC~690 VDC/AC
IP65
Auto Range: All range
Exceed Voltage: Voltage Range 713 V-788 V
Auto standby: standby current <10 ua
Silent mode: All range
Work Light: All range
Low Battery Indication: Voltage range 2,2 V-2,4 V
LCD Display:
- Voltage: 6 V-690 V; ±(1,5%+5)
- Frequency: 40 Hz~400 Hz; ±(3%+5)
----------
Power: 1,5 V Batteries (R03) x2
LCD Size: 31 × 20 mm
Product Net Weight: 280 g
Product Size: 272 x 85 x 31 mm
| Specifications | Range | UT18C |
| Voltage (V) | 12V | 8V±1V |
| 24V | 18V±2V | |
| 50V | 38V±4V | |
| 120V | 94V±8V | |
| 230V | 180V±14V | |
| 400V | 325V±15V | |
| 690V | 562V±24V | |
| Phase rotation test | 57Vac～400Vac (3 phase) | √ |
| Frequency: 50Hz~400Hz | ||
| Single lead (L2) voltage detection | Operating voltage: 100V~690V | √ |
| Frequency: 50Hz~400Hz | ||
| Continuity test | Resistance: 0Ω~100kΩ (+50% accuracy) | √ |
| Beeper and LED light indication | ||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | √ |
| Polarity detection | Positive & Negative | √ |
| Self-inspection | All LED or LCD | √ |
| No power test | Operating voltage: 100~690V | √ |
| Features | ||
| Voltage indication | LED | |
| Exceed voltage | Voltage range: 713V~788V | √ |
| Auto standby | Standby current＜10μA | √ |
| Slient mode | All range | √ |
| Work light | √ | |
| Low battery indication | Around 2.5V | √ |
| LCD display (voltage) | 6V~690V | ±(1.5%+5) |
| LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) |
| IP65 | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03)×2 | |
| Display | UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm | |
| Product color | Red and grey | |
| Product net weight | 280g | |
| Product size (W x H x D) | 272mm x 85mm x 31mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 30pcs | |
| Standard carton measurement | 440mm x 295mm x 455mm | |
| Standard carton gross weight | 17.5kg | |
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T UT18C Multifunction Voltage Tester: CATIII CATIV Safety
The UNI-T UT18C is a professional-grade multifunction voltage tester, categorized under Indicators, Voltage and Continuity Testers. This reliable and versatile tool is designed for electricians, technicians, and anyone requiring precise and safe voltage testing.
Key Features and Benefits
The UT18C boasts a range of features that make it a superior choice for various applications:
- CAT III and CAT IV safety ratings: Ensures safe operation in demanding environments.
- Multifunction capabilities: Performs multiple tests beyond basic voltage checks, enhancing efficiency.
- Durable and reliable construction: Built to withstand the rigors of daily professional use.
- User-friendly design: Simple operation and clear readings minimize errors and save time.
- UNI-T brand quality: Backed by a reputable manufacturer known for precision instruments.
Applications
This versatile tester is ideal for a wide array of applications, including:
- Electrical installations and maintenance
- Industrial automation and control systems
- Automotive diagnostics
- HVAC/R systems
- General electrical troubleshooting
Why Choose the UNI-T UT18C?
The UNI-T UT18C stands out due to its combination of safety, functionality, and reliability. Its CAT III and CAT IV ratings provide essential protection, while its multiple testing capabilities streamline your workflow. The robust design ensures longevity, making it a worthwhile investment for professionals who demand accuracy and dependability.
Technical Specifications
For detailed specifications, please refer to the product manual.
Order your UNI-T UT18C today and experience the difference!
