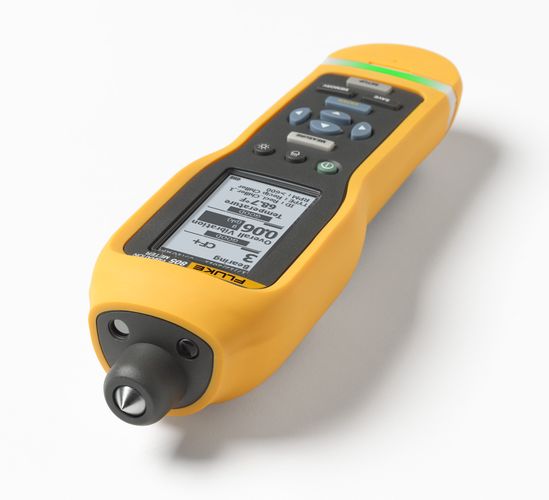

The Reliable; Repeatable; Accurate Way to Check Bearings and Overall Vibration Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable; severity-scaled readings of overall vibration and bearing condition. What Makes the 805 the Best Choice? A meter – not a pen – that measures overall vibration as well as specific variables like bearing condition and temperature; to provide a more complete picture A combination vibration and force sensor tip that compensates for user variance (force or angle) yielding accurate; repeatable readings A four-level severity scale and onboard processor calculate bearing condition and overall vibration using easy-to-understand textual alerts (Good; Satisfactory; Unsatisfactory; Unacceptable) Sensor sensitivity can read a wide range of frequencies (10 to 1;000 Hz and 4;000 to 20;000 Hz) covering most machine and component types Straight-forward user interface that minimizes the user inputs to RPM range and equipment type Other useful features: Measures overall vibration (10 Hz to 1;000 Hz) for acceleration; velocity; and displacement units of measurement for a wide variety of machines Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4;000 Hz and 20;000 Hz Compares vibration levels with ISO-10816 severity scales Allows you to view trending in Microsoft® Excel using pre-built templates Features colored lighting system (green; red) and on-screen comments to indicate how much pressure needs to be applied to take measurements Measures temperature with Spot IR Sensor to increase diagnostic capabilities Holds and saves up to 3;500 measurements in on-board memory Provides external accelerometer support for hard to reach locations Allows you to export data via USB Provides audio output for listening to bearing ton Fluke-805 Vibration Meter includes soft case and belt holster. Uses Lithium batteries.(2 x alkaline AA) USB Cable, Manual supplement
