ΠΠΏΠΈΡΠ°Π½ΠΈΠ΅ ΡΠΎΠ²Π°ΡΠ° ΠΎΡ ΠΏΠΎΡΡΠ°Π²ΡΠΈΠΊΠ°

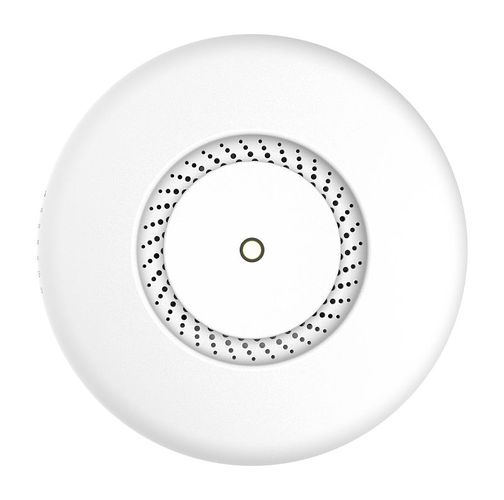

Mikrotik RBcAPGi 5acD2nD Access Point - wireless access point
Mikrotik RBcAPGi 5acD2nD CAP Capsman AC is a very efficient wireless AP access point for indoor applications. Its aesthetic and original design makes it look beautiful on both walls and ceilings. It has a two-band wireless radio connection, which supports two frequency bands: 2 GHz and 5 GHz, in 802.11ac and older. It provides a 360 degree range. The device is equipped with Mikrotik RouterOS Level 4 license operating system.
![Microtik RBcAPGi 5acD2nD CAP Capsman, AP access point, wall or ceiling mounted,](https://www.batna24.com/images/325386_1.webp)
Extendability of the network
When the radio supports repeater mode, the two Ethernet ports give you the ability to expand your network with cables even if a PoE power supply is required, because cAP ac supports 802.3af/at PoE input on the first port and passive PoE output on the second port. The device also provides support for IPsec hardware acceleration.
![Radio module , MIKROTIK CAP AC RBCAPGI-5ACD2ND ACCESS POINT](https://www.batna24.com/images/325386_2.webp)
The cAP ac frequency range
The MikroTik cAP ac (international) wireless access point supports the 2412-2484 MHz and 5150-5875 MHz bands. The specific frequency range may be limited by national regulations.
![MICROTIK CAP AC RBCAPGI-5ACD2ND ACCESS POINT](https://www.batna24.com/images/325386_3.webp)
Main features:
Main features:
- Operating temperature from -40Β°C to 50Β°C
- 2.4 GHz and 5 GHz wireless network
- Number of processor cores 4
![](https://www.batna24.com/products/DNXGFMKRJRMMOK/1.webp)
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Maximum wireless transmission speed | 867 Mb/s |
Number of LAN ports | 2x 10/100/1000BaseTX (RJ45) |
Operating frequency | Dual Band (2.4GHz, 5GHz) |
Wireless network standards | IEEE 802.11b |
Wireless network standards | IEEE 802.11g |
Wireless network standards | IEEE 802.11n |
Wireless network standards | IEEE 802.11a |
Wireless network standards | IEEE 802.11ac |
2.4 GHz | Yes |
5 GHz | Yes |
AC adapter included | Yes |
AC input voltage | 17 - 57 |
Antenna features | Integrated antenna |
Antenna gain | Under 10dbi |
Antenna gain level (max) | 2.5 |
Antenna type | Integrated |
Antenna type | Internal |
Application | Indoor |
Built-in processor | Yes |
Depth | 30 |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 10,100,1000 |
Flash memory | 16 |
Frequency band | 2.412 - 2.484, 5.15 - 5.875 |
Harmonized System (HS) code | 85176990 |
Height | 136 |
Internal | No |
Internal memory | 128 |
LED indicators | Yes |
Maximum data transfer rate (2.4 GHz) | 300 |
Maximum data transfer rate (5 GHz) | 867 |
Mounting kit | Yes |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at |
Operating system installed | RouterOS |
Operating temperature (T-T) | -40 - 50 |
Placement | Wall |
PoE adapter included | Yes |
Power consumption (max) | 13 |
Power over Ethernet (PoE) | Yes |
Product colour | White |
Receiver sensitivity | 2.4GHz: 1MBit/s: -100 @ 26dBm Tx 11MBit/s: -94 @ 26dBm Tx 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -78 @ 23dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -73 @ 22dBm Tx 5GHz: 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -80 @ 21dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -75 @ 20 |
Transmitting power | 26 |
Type of device power supply | PoE 802.3af/at |
Width | 136 |
