Product description

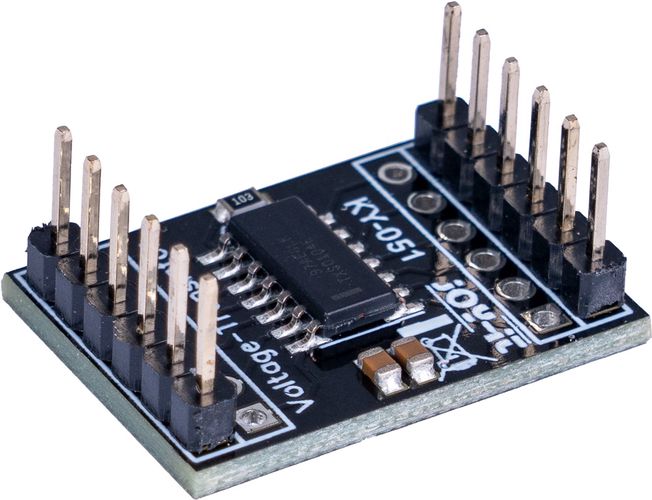

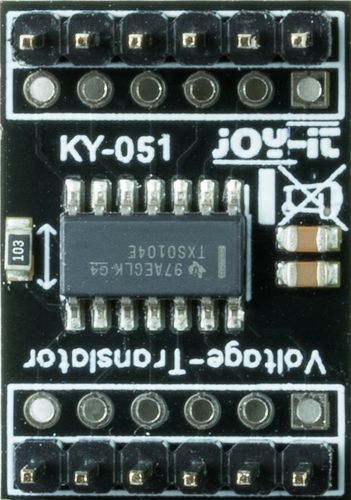

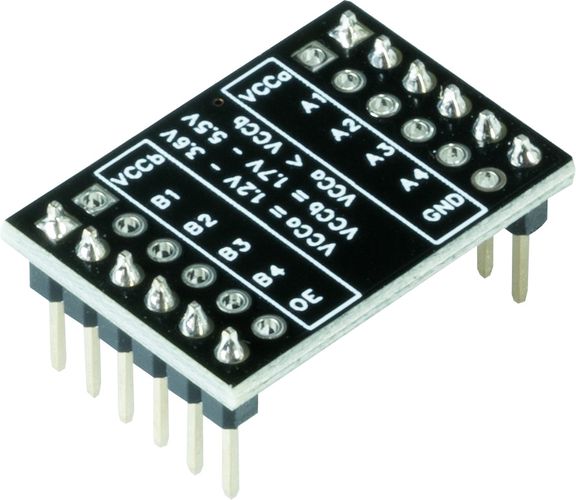

This module translates digital signals from one voltage to another. The module can be soldered solidly or be used with a breadboard.
Technical data
| Model | Voltage Translator / Level Shifter |
| Function | Converts digital signals from one voltage to another |
| Chip | TXS0104E |
| Available channels | 4 |
| Voltage range (VCCa) | 1,2 - 3,6 V |
| Voltage range (VCCb) | 1,7 - 5,5 V |
| Dimensions | 24 x 17 x 11 mm |
| Weight | 1 g |
Useful information
Specifications
Other products of the same brand
Other products in this category
Supplier product description
The module can be soldered solidly or be used with a breadboard.
Technical data:
Model: Voltage Translator / Level Shifter
Function: Converts digital signals from one voltage to another
Chip: TXS0104E
Available channels: 4
Voltage range ( VCCa ): 1,2 - 3,6 V
Voltage range ( VCCb ): 1,7 - 5,5 V
Useful information
Experimental product description generated by artificial intelligence
JOY-IT Voltage Translator 5V/3.3V DOWN / UP (Bidirectional)
This bidirectional voltage translator, also known as a level shifter, is a crucial component for interfacing digital signals between systems operating at different voltage levels. It seamlessly converts digital signals from 5V to 3.3V and vice versa, making it ideal for connecting devices with varying voltage requirements.
Key Features and Functions
- Bidirectional Translation: Converts signals in both directions (5V to 3.3V and 3.3V to 5V).
- Multiple Channels: Offers four independent channels for simultaneous signal conversion.
- Wide Voltage Range: Accommodates input voltages ranging from 1.2V to 3.6V (VCCa) and output voltages from 1.7V to 5.5V (VCCb).
- Easy Integration: Can be easily soldered or used with a breadboard, offering flexibility in your project setup.
- Autonomous Operation: No additional software or coding is required; the module works independently.
Applications
This versatile module finds applications in various projects where voltage level compatibility is crucial. Some common uses include:
- Connecting 5V sensors and modules to 3.3V microcontrollers (like Raspberry Pi).
- Interfacing between different microcontroller systems with varying voltage levels.
- Simplifying complex circuit designs by eliminating the need for additional voltage regulation circuitry.
Why Choose the JOY-IT Voltage Translator?
The JOY-IT Voltage Translator provides a reliable and efficient solution for voltage level shifting. Its compact design, ease of use, and broad compatibility make it a valuable asset for hobbyists, students, and professionals alike. The module's robust construction ensures long-term performance and reliability in your projects.
| Specification | Value |
|---|---|
| Model | Voltage Translator / Level Shifter |
| Function | Converts digital signals from one voltage to another |
| Chipset | TXS0104E |
| Available Channels | 4 |
| Voltage Range (VCCa) | 1.2V - 3.6V |
| Voltage Range (VCCb) | 1.7V - 5.5V |
| Dimensions | 24 x 17 x 11 mm |
