Product description

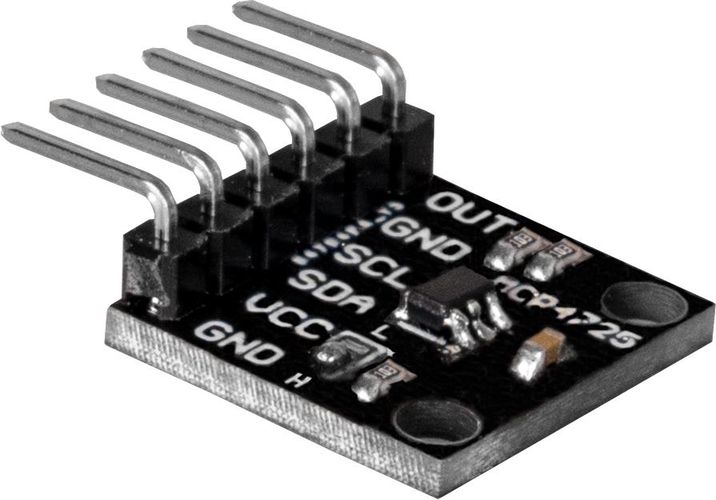

Joy-iT Digital Analog Converter module
Useful information
Specifications
Supplier product description
With this digital to analog converter, you can generate an analog voltage using a digital I2C signal. The I2C address can be changed from 0x60 to 0x61 by changing a solder bridge.
The DAC has an integrated EEPROM memory, which makes it possible to output the desired voltage directly at startup.
The DAC has an integrated EEPROM memory, which makes it possible to output the desired voltage directly at startup.
Technical data:
Model: MCP4725
Special feature: Integrated EEPROM (14 bit)
Supply voltage Vcc: 2.7 V to 5.5 V
Logic level: Vcc
Output voltage: Vout=(Vcc*Dn)/4096 [ Dn = 12 bit input code ]
Max. output current: 25 mA
Resolution: 12 bit
Interface: I2C
I2C address: 0x60 ( can be changed to 0x61 with solder bridge )
Useful information
Supplier parameters
Product code
COM-DAC01
Brand
Joy-iT
Supplier's product code
COM-DAC01
Product ID
U-2614708
