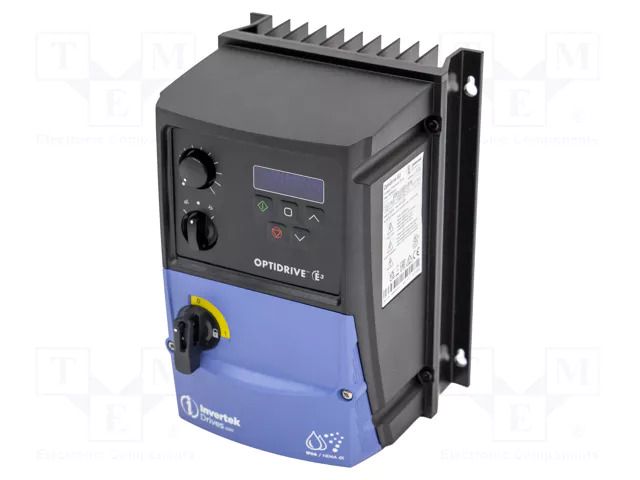

Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; IN: 4; 0÷500Hz INVERTEK DRIVES
Product Code: ODE-3-140022-3F1B
Brand
More similar products
Delivery terms
2024-11-28 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 1 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Brand
Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; IN: 4; 0÷500Hz INVERTEK DRIVES
Useful information
Specifications
Supplier product description
Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; IN: 4; 0÷500Hz
Useful information
Supplier parameters
Product code
ODE-3-140022-3F1B
Supplier's product code
ODE-3-140022-3F1B
Product ID
U-2430363
Current rating
2.2A
Driver features
integrated EMC filter
Electrical connection
screw terminals
Input 1 properties
rotational speed setting with signal 0...10V, 4...20mA, 0...20mA
Inverter output voltage
3 x 400V AC
IP rating
IP66
Manufacturer
INVERTEK DRIVES
Manufacturer series
Optidrive E3
Max motor power
0.75kW
Mounting
for wall mounting
Number of analog inputs
1
Number of analog outputs
1
Number of inputs
4
Number of outputs
2
Operating temperature
-10...50°C
Output frequency
0...500Hz
Starting/stopping time
0.1...600s
The programming method
PC
Type of module
vector inverter
Voltage between phases (for three phase system)
3 x 380...480V AC
Brand
INVERTEK DRIVES
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
