Ubiquiti USW-PRO-24-POE | Switch | 16x RJ45 1000Mb/s PoE+, 8x RJ45 1000Mb/s PoE++, 2x SFP+, UBIQUITI
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Product description
Specifications
Supplier product description

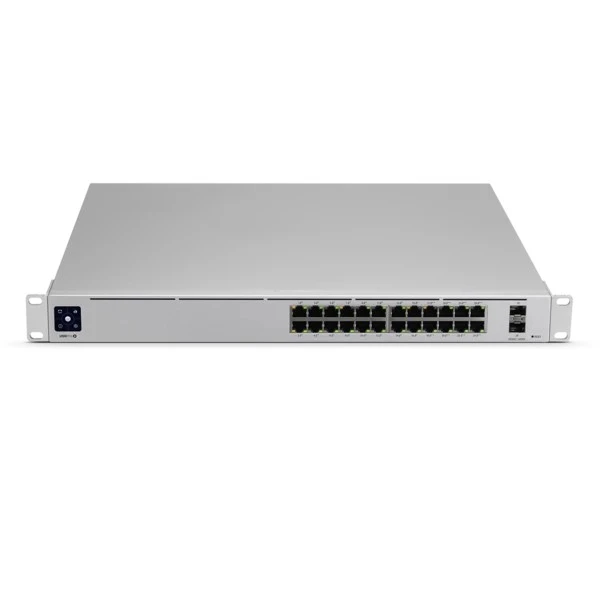

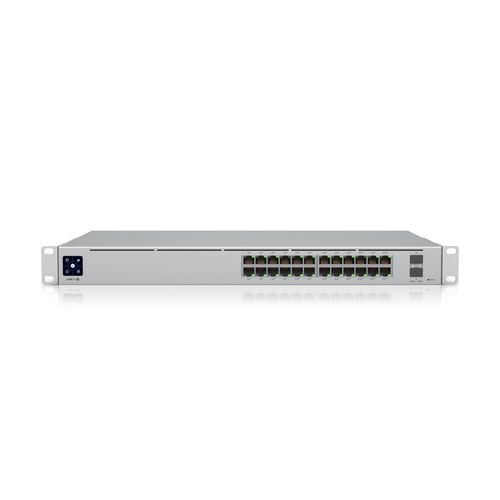

Ubiquiti USW-PRO-24-POE
24-port switch with 16x PoE ports + 802.3at, 8x PoE ports ++ 802.3bt and 2x SFP ports + 10 GB. Efficient second generation UniFi switching.
Expand your Ubiquiti network
Expand or build your network with UniFi® Switch, which is part of the Ubiquiti® UniFi Enterprise. The UniFi PRO 24 PoE switch is a configurable Gigabit Layer-3 switch with automatic 16x 802.3at PoE + and 8 8 802.3bt PoE + + detection. Unifi PRO 24 PoE switch offers 1.3" touch screen LCM display and integrated fans for silent cooling. LCM displays the device status and the information necessary for a quick diagnosis.
Can be configured from anywhere in the world
UniFi Pro Switch 24 PoE is managed and configured by a UniFi OS Console with support for UniFi mobile applications. The Switch offers a wide range of advanced protocols and layer 3 switching functions, including operating mode (switching, mirroring or aggregation) for each port, Inter-VLAN routing, static routing server and DHCP. The UniFi OS Console and mobile application allow administrators to configure and monitor virtually all switch functions in the graphical user interface from anywhere.
The most important features:
The most important features:
- 24x Gigabit RJ45 ports 10/100/1000 Mb/s
- 16x PoE+ ports 802.3af/at
- 8x PoE++ 802.3bt ports
- 2x SFP+ slots
- Management and configuration by UniFi controller
- PoE+ IEEE 802.3at/af and PoE++ 802.3bt
- Switching capacity: 88 Gb/s
- Total non-blocking capacity: 44 Gb/s
- 1.3-inch LCM touch module
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 24x [10/100/1000M (RJ45)] |
| Number of LAN ports | 2x [10G (SFP+)] |
| Number of PoE ports | 16x [802.3af/at (1G)] |
| Number of PoE ports | 8x [802.3bt (1G)] |
| 10G support | Yes |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Authentication type | IEEE 802.1x,RADIUS |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE, FCC, IC |
| DC input voltage | 52 |
| Depth | 285.4 |
| DHCP features | DHCP server |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 65.472 |
| Full duplex | Yes |
| Harmonized System (HS) code | 85176990 |
| Height | 43.7 |
| Input current | 7.69 |
| Installed SFP+ modules quantity | 2 |
| Jumbo frames support | Yes |
| LED indicators | Activity, Link, PoE, Speed, System |
| Management | By web browser |
| Management | Dedicated application |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Number of power supply units | 1 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -5 - 40 |
| Port mirroring | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 64 |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power supply included | Yes |
| Product colour | Silver |
| Rack mounting | Yes |
| Spanning tree protocol | Yes |
| Static route | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 88 |
| Switching layer | 3 |
| Throughput | 44000 |
| Total Power over Ethernet (PoE) budget | 400 |
| Type of case | Rack (1U) |
| Type of case | Metal |
| VLAN support | Yes |
| Weight | 4.3 |
| Width | 442.4 |
