Shelly 3EM three-phase energy meter DIN
Pickup in department 1-5 b.d.
 8 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
IMPORTANT: The office will be closed on 10 January 2025 due to an inventory.
Quantity in shop
| 8 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Product description

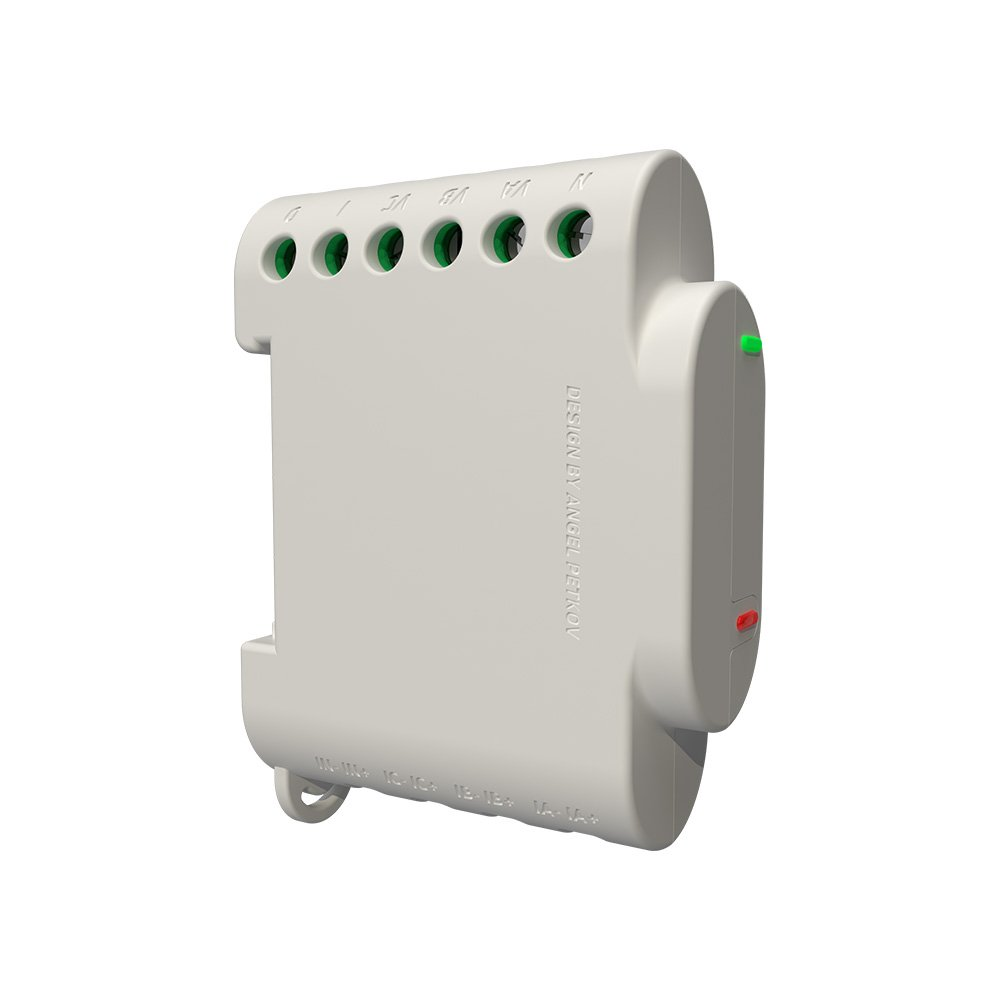

Shelly 3EM
Opens image in full screenOpen
Downloads
Manuals
User and Safety Guide - Multi language
Compliance
Shelly 3EM multilingual EU declaration of conformity.pdf
Shelly 3EM UK PSTI ACT Statement of compliance.pdf
What is Shelly 3EM?
The professional 3-phase energy meter
Shelly 3EM can calculate 2-way consumption: produced and used energy for each of the three phases. The device can be configured to measure three separate points of a mono-phase electrical system and measure each of them separately.
Features
-
No HUB required.
-
Wide range of voltage support.
-
Anti-energy theft protection
-
Overconsumption and over energy protection
-
It can be integrated to work with all other Shelly devices.
-
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
-
Easily make your Arduino project live and usable in your automation project.
Specification
Enlarges the table by opening it in a full screen dialogOpen
|
POWER |
|
|
Power supply AC |
110-230V ±10%, 50/60Hz |
|
Power supply DC |
No |
|
SPECIAL FUNCTIONS |
|
|
Contactor Control |
Yes – max 10A |
|
Roller shutter mode |
No |
|
Device temperature protection |
No |
|
Overload protection |
No |
|
Power measurement |
Yes |
|
FEATURES |
|
|
In Box |
Included 3x Current Transformers 120A |
|
Channels |
3 Channel |
|
Operational temperature |
0 to + 40 °C |
|
Device power consumption |
< 1 W |
|
Intelligent On/Off |
Yes |
|
Local and remote control |
Yes |
|
Sunrise/Sunset |
Yes |
|
Weekly Schedule |
Yes |
|
UL Listed option |
No |
|
CONNECTIVITY |
|
|
Wireless/WiFi Protocol |
802.11 b/g/n |
|
Radiofrequency |
2400 – 2500 MHz |
|
Range |
up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
|
DIMENSIONS |
|
|
Size |
73 mm x 57 mm x 22 mm |

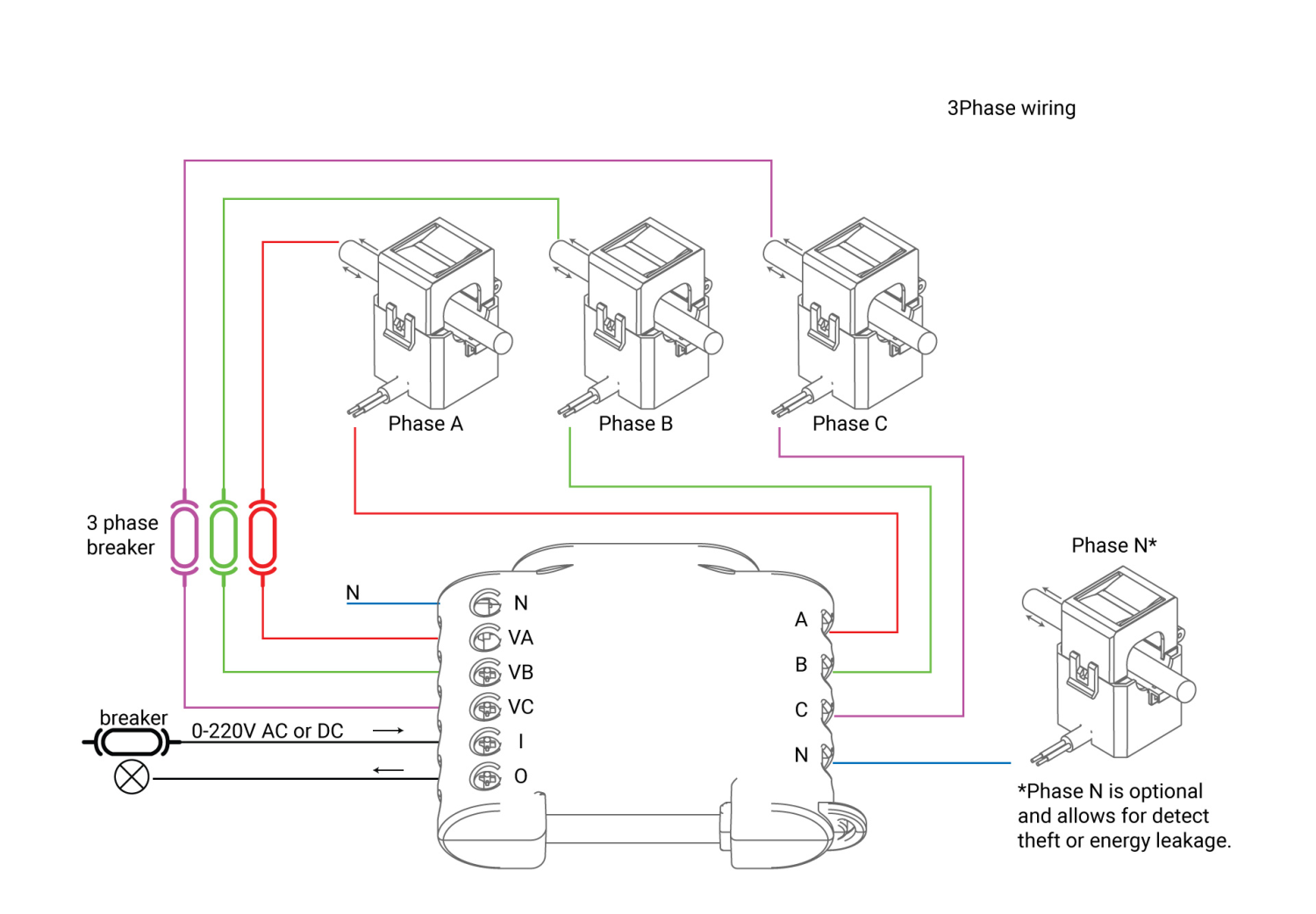

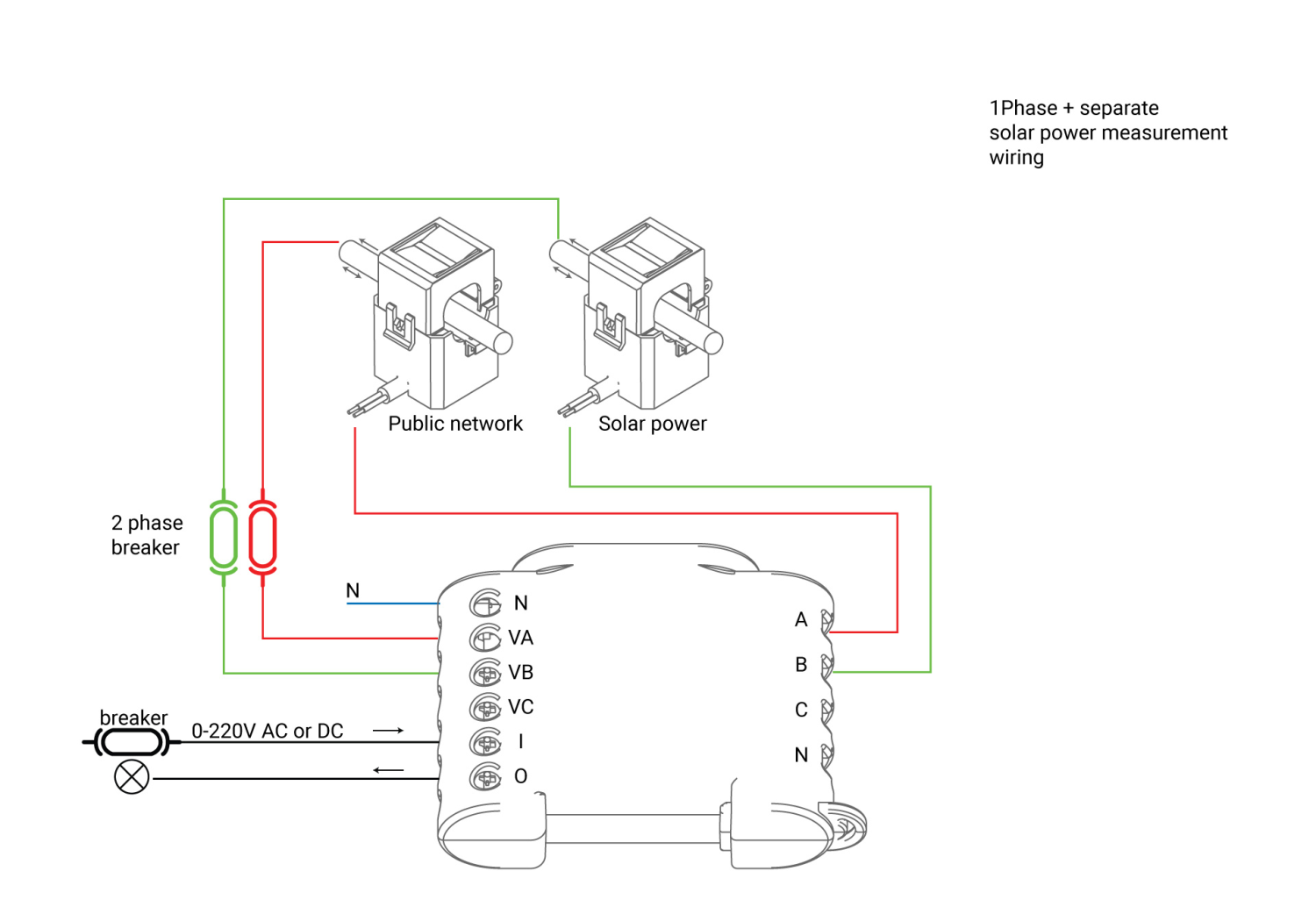

Wiring diagrams
Enlarges the table by opening it in a full screen dialogOpen
|
Opens image in full screenOpen
|
Opens image in full screenOpen
|
Enlarges the table by opening it in a full screen dialogOpen
|
Opens image in full screenOpen
|
Opens image in full screenOpen
|
Use cases
Оptimize energy usage
Ever wanted to live sustainаbly and save energy, money, and CO2? With Shelly 3EM, you can monitor the consumption оf each circuit, appliance, or of your whole home to optimize energy usage. In case you have solar panels or wind turbines, you can be aware how much energy was produced and make saving effortless.
Detailed info about your electricity consumption
With Shelly 3EM, you can view the quality of your electricity network regarding active power, reactive power, voltage, and power factor. Monitor your facility or home to avoid additional expenses or drastic drops in energy that may damage your appliances and machines.
Specifications
Experimental product description generated by artificial intelligence
Shelly 3EM: Precise Three-Phase Energy Monitoring
The Shelly 3EM three-phase energy meter is a powerful addition to any Shelly smart home system, offering comprehensive energy monitoring capabilities for three-phase electrical installations. This DIN-rail mountable device provides accurate and reliable data, empowering you to understand and manage your energy consumption effectively.
Key Features and Benefits
- Precise Measurement: Accurately measures energy consumption across all three phases.
- Real-time Monitoring: Access live energy usage data through the Shelly app.
- Remote Access: Monitor and manage your energy usage from anywhere with an internet connection.
- Easy Installation: Designed for simple DIN-rail mounting, making installation quick and straightforward.
- Data Analysis: Gain valuable insights into your energy patterns to identify areas for potential savings.
- Integration: Seamlessly integrates with other Shelly smart home devices for a comprehensive smart home solution.
Applications
The Shelly 3EM finds applications in a wide range of settings, including:
- Residential Homes: Monitor and control energy usage in your home.
- Commercial Buildings: Track energy consumption in offices, shops, and other commercial spaces.
- Industrial Settings: Monitor energy usage in factories and industrial facilities.
Why Choose Shelly 3EM?
The Shelly 3EM three-phase energy monitor stands out due to its combination of accuracy, ease of use, and seamless integration within the Shelly ecosystem. Its compact design and simple installation make it an ideal choice for both DIY enthusiasts and professional installers. Gain control over your energy costs and optimize your energy usage with the Shelly 3EM.
Technical Specifications
For detailed technical specifications, please refer to the product manual.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
