Product description

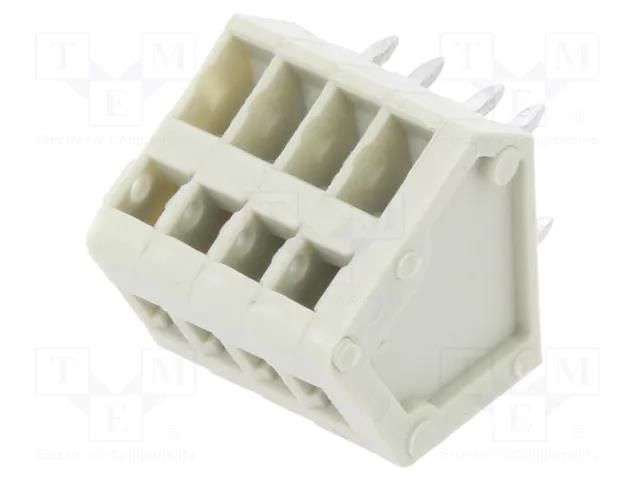

PCB terminal block; angled; 2.5mm; ways: 4; on PCBs; 0.08÷1mm2 PTR MESSTECHNIK
Useful information
Specifications
SKU
U-107803
Product code
AK3191/4
Supplier product description
PCB terminal block; angled; 2.5mm; ways: 4; on PCBs; 0.08÷1mm2
Useful information
Supplier parameters
Body material
polyamide 66
Colour
grey
Conform to the norm
VDE
Connector
terminal
Connector pinout layout
1x4
Contact material
copper alloy
Contacts pitch
2.5mm
Current rating
9A
Depth
12.1mm
Electrical mounting
THT
Flammability rating
UL94V-0
Height
11.6mm
Length
12mm
Manufacturer
PTR MESSTECHNIK
Mechanical mounting
on PCBs
Number of ways
4
Operating temperature
-30...105°C
Rated voltage
130V
Spatial orientation
angled
Type of connector
PCB terminal block
Wire cross-section
0.08...1mm<sup>2</sup>
Wire size
28AWG...20AWG
Product code
AK3191/4
Supplier's product code
AK3191/4
Product ID
U-107803
