Supplier product description

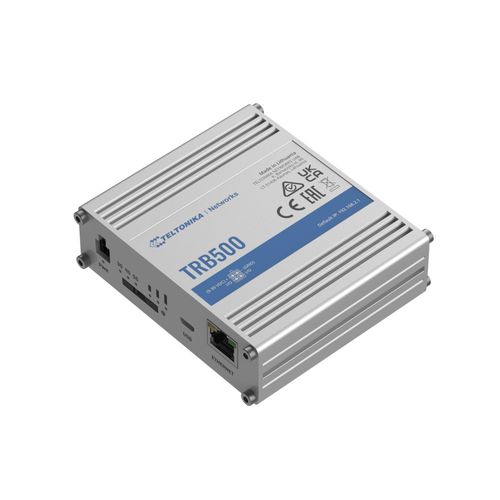

Teltonika TRB500
The TRB500 is a compact and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/O, enabling a high level of customization and multiple scenarios.
Ultra-high speed
The device enables 5G network speeds with ultra-low latency for critical infrastructures and high data throughput, provided by 4 external antennas that allow 4x4 MIMO.
RutOS operating system
The TRB500 is equipped with the RutOS operating system, which provides advanced security features and remote management system (RMS) compatibility to optimize remote management and monitoring capabilities for large fleets of devices.
| AC adapter included | Yes |
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 4 |
| Built-in processor | Yes |
| Cables included | LAN (RJ-45), Micro-USB |
| Cabling technology | 10/100/1000Base-T(X) |
| Control display unit | No |
| DC input voltage | 9 - 30 |
| Depth | 93.4 |
| DoS attack prevention | Yes |
| Dynamic DNS (DDNS) | Yes |
| Enclosure material | Aluminum |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Firewall security | Yes |
| Flash memory | 512 |
| Height | 30 |
| Internal memory | 256 |
| International Protection (IP) code | IP30 |
| LED indicators | LAN, Power, Signal strength, Status |
| MAC address filtering | Yes |
| Mounting type | DIN-rail/Wall mounting |
| Network address translation (NAT) | Yes |
| Number of simultaneous SIM cards | 1 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -40 - 75 |
| Power consumption (max) | 6 |
| Processor frequency | 1500 |
| Product colour | Stainless steel |
| Quick start guide | Yes |
| Reset button | Yes |
| Routing protocols | NHRP, BGP, EIGRP, OSPFv2, RIP-1, RIP-2 |
| Short Message Service (SMS) | Yes |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
| Syslog | Yes |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 241 |
| Width | 100 |
