Product description
Specifications
Supplier product description

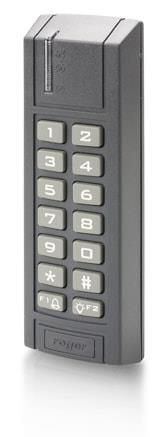

- EM 125 kHz access terminal with keypad
- On-board I/Os
Features | MCT12M | MCT12M-IO | MCT12M-DIO | MCT12E | MCT12 E-IO |
Authenti- cation | Card and/or PIN | Card and/or PIN | Card and/or PIN | Card and/or PIN | Card and/or PIN |
Cards | 13.56 MHz MIFARE | 13.56 MHz MIFARE | 13.56 MHz MIFARE | EM 125 kHz | EM 125 kHz |
Card readout | CSN, MSN, | CSN, MSN, | CSN, MSN, | CSN | CSN |
Support for normal and long | + | + | + | - | - |
Support for external PRT reader | - | - | - | + | + |
Commun-ication interface | RS485 | RS485 | RS485 | RS485, | RS485, |
Inputs | - | 3 | 3 | - | 3 |
Parametric inputs | - | + | + | - | - |
Double Wiring input option | - | + | + | - | - |
Transistor outputs | - | 2 | 2 | - | 2 |
Relay outputs | - | 1 | 1 | - | 1 |
Function keys | 2 | 2 | 2 | 2 | 2 |
Tamper contact | + | + | + | + | + |
Outdoor environ-ment | + | + | + | + | + |
12VDC power supply | + | + | + | + | + |
CE mark | + | + | + | + | + |
