Product description

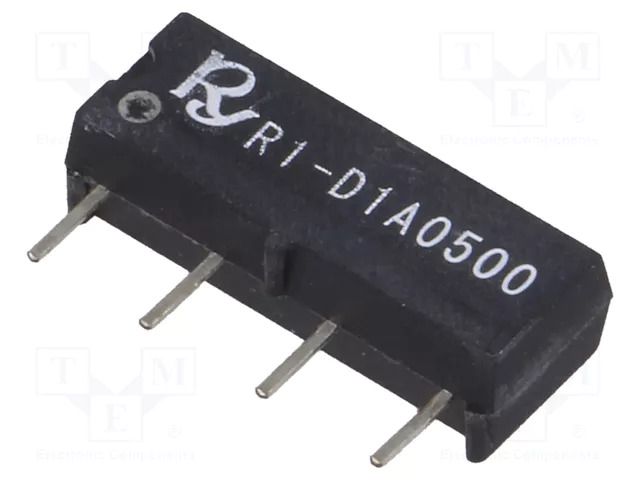

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; 50mW Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; 50mW
Useful information
Supplier parameters
Product code
R1-D1A0500
Body dimensions
19x5x7mm
Case
SIL
Coil power consumption
50mW
Coil resistance
500Ω
Coil voltage max.
16V DC
Coil voltage min.
3.75V DC
Contact current max.
1A
Contact material
AgCdO
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
Recoy/RAYEX ELECTRONICS
Mounting
PCB
Operate time
1ms
Operating temperature
-40...85°C
Optional equipment
diode
Rated coil voltage
5V DC
Relay series
R1
Release time
0.5ms
Switched voltage
max. 250V DC
Switching capacity
10VA
Terminal pitch
5.08mm
Type of relay
reed switch
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
R1-D1A0500
Product ID
U-301705
