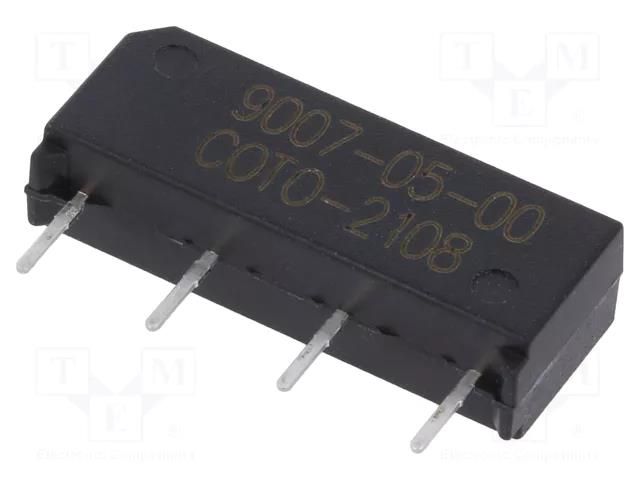

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 1A; max.100VDC; 10W; THT COTO TECHNOLOGY
Product Code: 9007-05-00
Brand
More similar products
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Brand
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 1A; max.100VDC; 10W; THT COTO TECHNOLOGY
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 1A; max.100VDC; 10W; THT
Useful information
Supplier parameters
Supplier's product code
9007-05-00
Product ID
U-2217158
Body dimensions
19.3x8.1x5.08mm
Case
SIP
Coil resistance
500Ω
Coil voltage max.
6.5V DC
Coil voltage min.
3.75V DC
Contact current max.
1A
Contact resistance
0.2Ω
Contacts configuration
SPST-NO
Manufacturer
COTO TECHNOLOGY
Mounting
THT
Operating temperature
-20...85°C
Rated coil voltage
5V DC
Relay series
9007
Switched voltage
max. 100V DC
Switching capacity
10W
Terminal pitch
5.08mm
Type of relay
reed switch
NomNr
9007-05-00
Brand
COTO TECHNOLOGY
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
