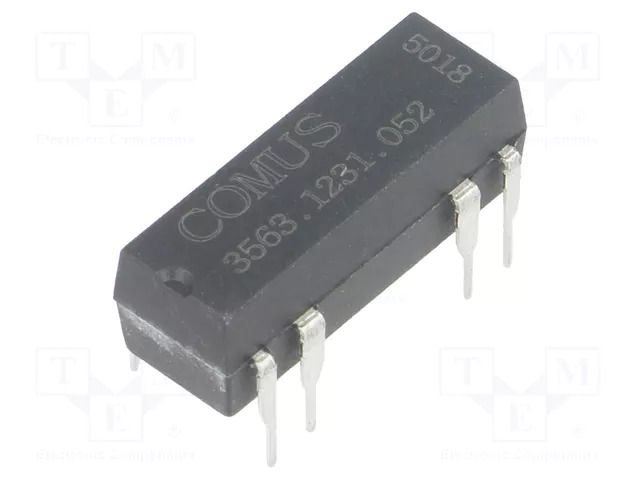

Relay: reed switch; SPDT; Ucoil: 5VDC; 400mA; max.100VDC; 5W; THT COMUS
Product Code: 3563.1231.052
Brand
More similar products
Delivery terms
2024-07-26 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 49 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: reed switch; SPDT; Ucoil: 5VDC; 400mA; max.100VDC; 5W; THT
Useful information
Supplier parameters
NomNr
3563.1231.052
Brand
COMUS
Supplier's product code
3563.1231.052
Product ID
U-83702
Body dimensions
19.5x6.9x6.9mm
Case
DIP14
Coil resistance
200Ω
Coil voltage max.
7V DC
Coil voltage min.
3.75V DC
Contact current max.
400mA
Contact resistance
0.2Ω
Contacts configuration
SPDT
Manufacturer
COMUS
Mounting
THT
Operating temperature
-20...85°C
Optional equipment
electrostatic shield
Rated coil voltage
5V DC
Relay series
3563
Switched voltage
max. 100V DC
Switching capacity
5W
Terminal pitch
2.54mm
Type of relay
reed switch
