Product description

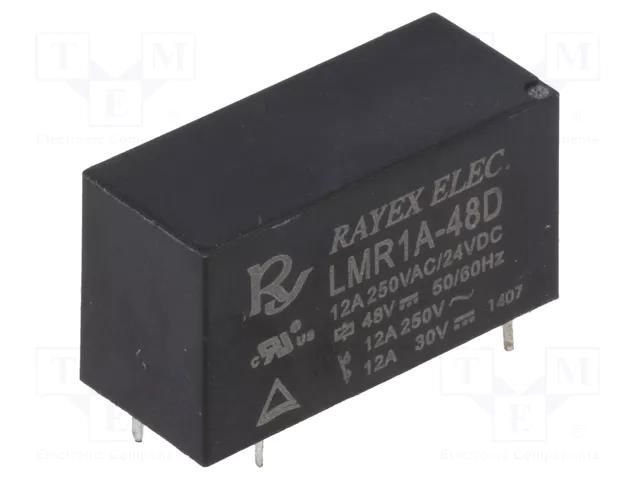

Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 12A; 12A/250VAC Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 12A; 12A/250VAC
Useful information
Supplier parameters
NomNr
LMR1A-48D
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LMR1A-48D
Product ID
U-240346
AC contacts rating @R
12A / 250V AC
Body dimensions
29x12.5x15.5mm
Coil power consumption
530mW
Coil resistance
4.4kΩ
Contact current max.
12A
Contact material
AgCdO
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
12A / 30V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Mounting
PCB
Operate time
15ms
Operating temperature
-40...80°C
Rated coil voltage
48V DC
Relay series
LMR1
Relay variant
miniature
Release time
10ms
Switched voltage
max. 30V DC
Terminal pitch
3.5mm
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
