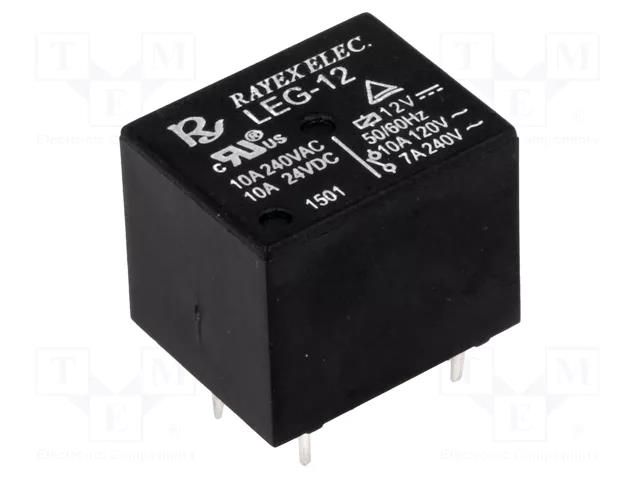

Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Product Code: LEG-12
More similar products
Delivery terms
2024-09-09 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 16290 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A
Useful information
Supplier parameters
Supplier's product code
LEG-12
Product ID
U-235419
AC contacts rating @R
10A / 120V AC
Body dimensions
19.5x15.8x15mm
Coil current
30mA
Coil power consumption
360mW
Coil resistance
400Ω
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 24V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Mounting
PCB
Operate time
8ms
Operating temperature
-25...80°C
Rated coil voltage
12V DC
Relay series
LEG
Relay variant
miniature
Release time
8ms
Switched voltage
max. 100V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
Recoy/RAYEX ELECTRONICS
NomNr
LEG-12
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
