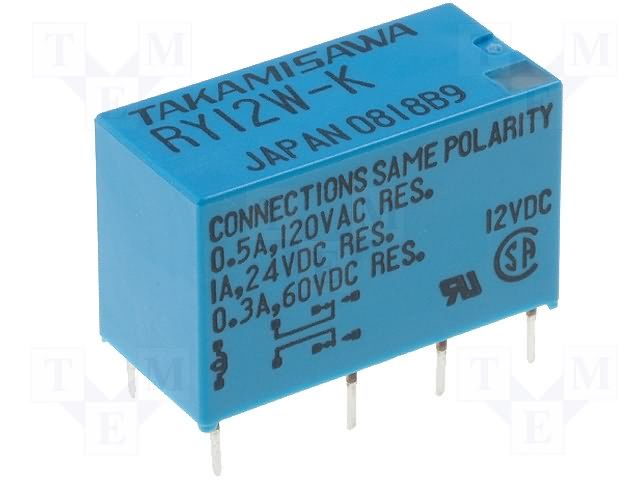

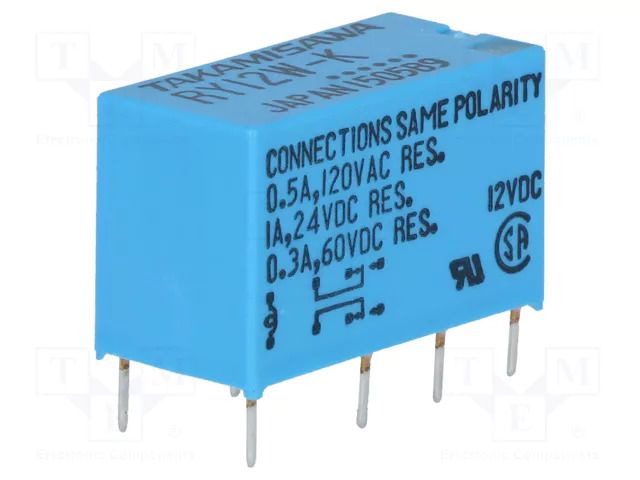

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/120VAC; RY FUJITSU
Product Code: RY-12W-K
Brand
More similar products
Delivery terms
2024-11-21 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2014 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/120VAC; RY
Useful information
Supplier parameters
Product code
RY-12W-K
Brand
FUJITSU
Supplier's product code
RY-12W-K
Product ID
U-311056
#Promotion
maintenance_202308
AC contacts rating @R
0.5A / 120V AC
Body dimensions
20.2x9.8x12.5mm
Coil power consumption
150mW
Coil resistance
960Ω
Contact current max.
1A
Contact material
AgPd/Au 0,2μm
Contact plating
gold-plated
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
1A / 24V DC
Manufacturer
FUJITSU
Mounting
PCB
Operate time
6ms
Operating temperature
-30...90°C
Rated coil voltage
12V DC
Relay series
RY
Relay variant
miniature
Release time
3ms
Switched voltage
max. 60V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Unit price
No
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
