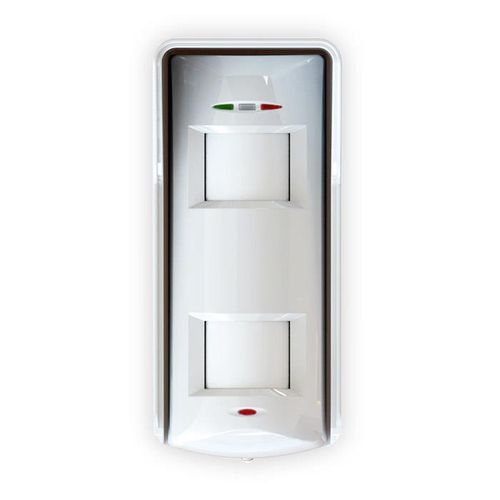

PIR Detector Pyronix XDH10TT-AM
Product Code: JFPXDH10TTAM1
More similar products
Delivery terms
2024-09-20 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
PIR Detector Pyronix XDH10TT-AM
Specifications
SKU
U-2528189
Product code
JFPXDH10TTAM1
Supplier product description
- Tri-signal detection logic
- Vegetation sway elimination
- Tri-anti masking technology
- Digital temperature compensation
- 3 Microwave frequency bands
- Built In walk test buzzer
- Weatherproof sealed optics
- Heavy duty ultra violet filter
- 10m volumetric coverage
- Optional Heavy Duty Wall Bracket
| Automatic sensitivity | Yes |
| Set sensitivity | Auto or high |
| Digital temperature compensation | Yes |
| Tamper protection | Front and rear |
| Separate LED indication | Microwave, infrared and alarm |
| Maximum range | 10m (13m with curtain lens) |
| Volumetric coverage | Yes |
| Curtain coverage | Optional |
| Animal immunity | 10kg |
| Tri technology | 2 infrared and 1 microwave |
| Detection speed | 0.25 - 2.5m/s |
| Coverage angle | 90 degree (142 degree with curtain lens) |
| Detection zones | 78 (24 with curtain lens) |
| Detection planes | 5 (1 with curtain lens) |
| Detection method | 2 low noise dual element passive infrared sensors and a microwave doppler unit |
| Optimum coverage height | 2.4m |
| Certified mounting height | 2.4m |
| Nominal operating temperature | -30°C to +70°C |
| Physical dimensions (H x W x D) | 188 x 84 x 77mm |
| Weight | 300g |
| Operating voltage | 9-16VDC, 13.8VDC typically |
| Quiescent current consumption | 24mA @ 13.8VDC |
| Electrical conformity | CE |
| Certification type | Self-certified |
Supplier parameters
Product code
JFPXDH10TTAM1
Category
Outdoor PIR dete
Product ID
U-2528189
Supplier's product code
JFPXDH10TTAM1
