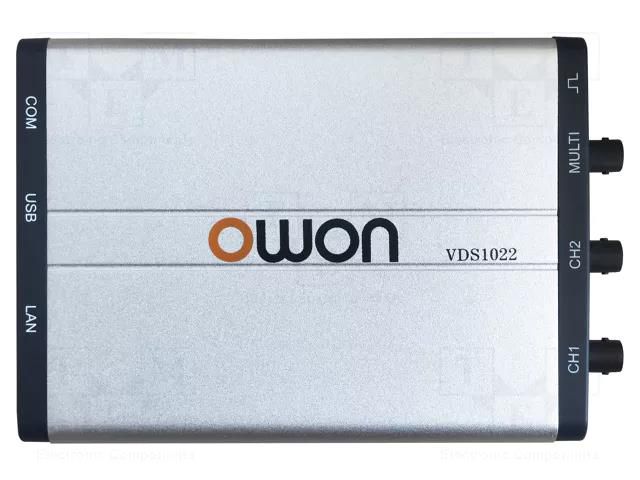

PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 40V; 8bit OWON
Product Code: VDS1022
More similar products
Delivery terms
2024-07-25 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 7 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 40V; 8bit OWON
Useful information
Specifications
SKU
U-2304903
Product code
VDS1022
Supplier product description
PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 40V; 8bit
Useful information
Supplier parameters
Product code
VDS1022
Supplier's product code
VDS1022
Product ID
U-2304903
Band
25MHz
Dimensions
170x120x18mm
Input coupling
AC, DC, GND
Input impedance
1MΩ/10pF
Input sensitivity
5mV/div...5V/div
Interface
USB 2.0
Manufacturer
OWON
Max. input voltage
40V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
5kpts
Number of channels
2
Rise time
≤14ns
Sampling
100Msps
Standard equipment
case
Supply voltage
5V DC
Support
SCPI
Type of oscilloscope
PC connected oscilloscope
Trigger
video signal
Trigger modes
automatic
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
