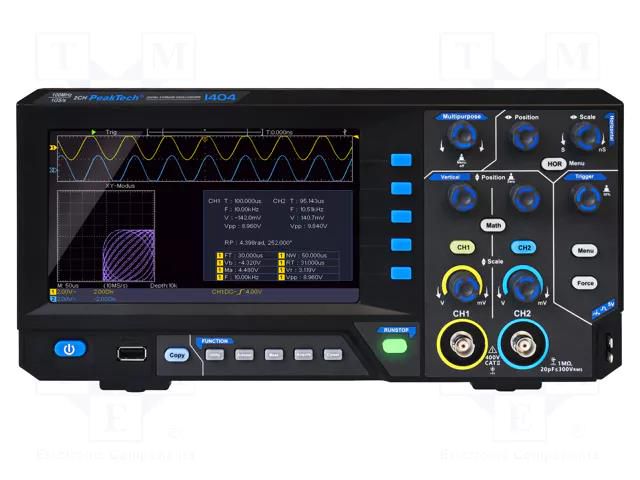

Oscilloscope: digital; DSO; Ch: 2; 100MHz; 1Gsps; 10kpts; LCD TFT 7" PEAKTECH
Product Code: PKT-P1404
Brand
More similar products
Delivery terms
2024-12-04 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Oscilloscope: digital; DSO; Ch: 2; 100MHz; 1Gsps; 10kpts; LCD TFT 7" PEAKTECH
Useful information
Specifications
Supplier product description
Oscilloscope: digital; DSO; Ch: 2; 100MHz; 1Gsps; 10kpts; LCD TFT 7"
Useful information
Supplier parameters
Product code
PKT-P1404
Brand
PEAKTECH
Supplier's product code
PKT-P1404
Product ID
U-2545417
Band
100MHz
Body dimensions
301x152x70mm
Connectors for the country
Europe
Display resolution
800x480
Horizontal accuracy
±3%
Input coupling
AC, DC, GND
Input impedance
1MΩ/20pF
Input sensitivity
5mV/div...5V/div
Interface
USB
Kind of display used
LCD TFT 7"
Kind of oscilloscope
DSO
Manufacturer
PEAKTECH
Max. input voltage
400V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
10kpts
Number of channels
2
Operating temperature
0...40°C
Power consumption
15W
Rise time
≤3.5ns
Sampling
1Gsps
Software
included
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
5n...1ks/div
Type of oscilloscope
digital
Trigger
video signal
Trigger coupling
DC
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
