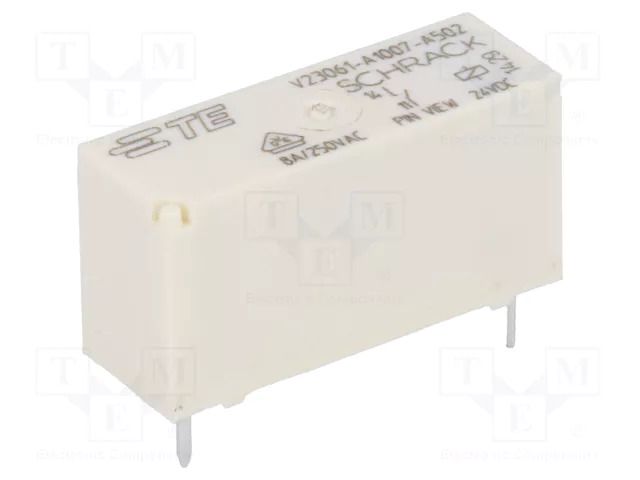

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A; 8A/240VAC; THT TE Connectivity
Product Code: V23061A1007A502
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Brand
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A; 8A/240VAC; THT TE Connectivity
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A; 8A/240VAC; THT
Useful information
Supplier parameters
NomNr
V23061A1007A502
Supplier's product code
V23061A1007A502
Product ID
U-373624
AC contacts rating @R
8A / 240V AC
Body dimensions
28.6x10x15mm
Coil power consumption
254mW
Coil resistance
2.27kΩ
Contact current max.
8A
Contact material
AgNi
Contacts configuration
SPST-NO
DC contacts rating @R
8A / 30V DC
Manufacturer
TE Connectivity
Mounting
THT
Operate time
10ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay series
V23061
Relay variant
miniature
Release time
5ms
Switched voltage
max. 300V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
Brand
TE Connectivity
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
