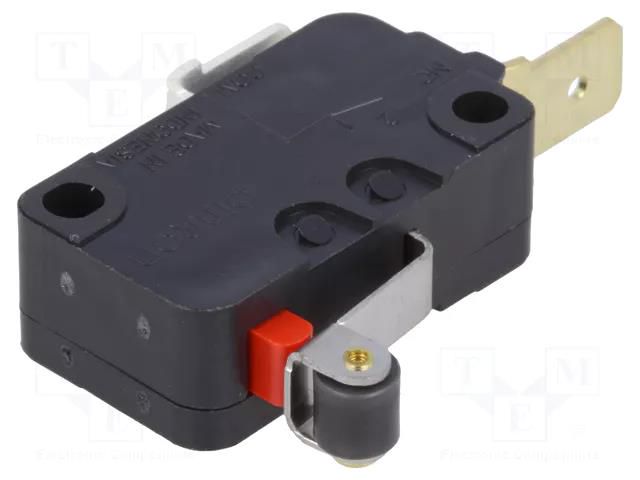

Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; SPST-NC; Pos: 2 OMRON Electronic Components
Product Code: D3V-165-2C4
Brand
More similar products
Delivery terms
2024-08-01 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 30 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; SPST-NC; Pos: 2
Useful information
Supplier parameters
Product code
D3V-165-2C4
Supplier's product code
D3V-165-2C4
Product ID
U-158510
AC contacts rating @R
16A / 250V AC
Body dimensions
27.8x10.3x15.9mm
Contact plating
silver plated
Contacts configuration
SPST-NC
DC contacts rating @R
10A / 30V DC
Electrical life
100000 cycles
IP rating
IP40
Leads
connectors 6,3x0,8mm
Lever length
11.6mm
Manufacturer
OMRON Electronic Components
Manufacturer series
D3V
Max. contact resistance
:30mΩ
Mechanical durability
10000000 cycles
Min. insulation resistance
0.1GΩ
Number of positions
2
Operating Force
0.98N
Operating temperature
-25...105°C
Stable positions number
1
Switches features
with lever (with roller)
Switching method
ON-(OFF)
Type of switch
microswitch SNAP ACTION
Brand
Omron
