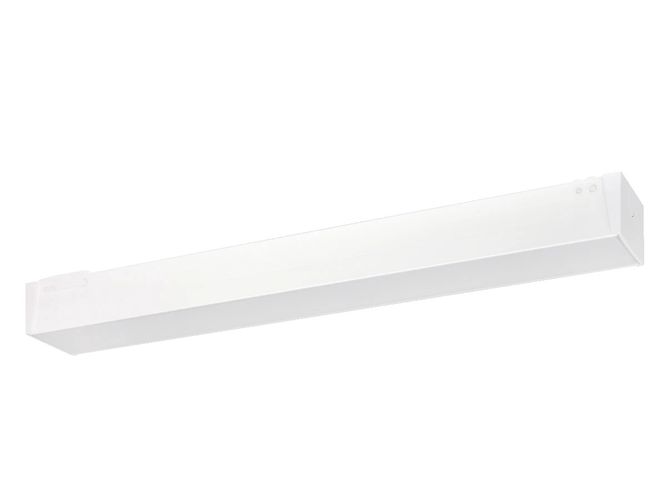

LED line PRIME FUSION linear lamp 20W 4000K 2600lm 0-10V 30*90° white
Product Code: 204508
More similar products
Delivery terms
2024-12-04 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
LED line PRIME FUSION linear lamp 20W 4000K 2600lm 0-10V 30*90° white
Specifications
SKU
U-4061460
Barcodes
5905378204508
Product code
204508
Supplier product description
Supplier parameters
Product code
204508
Ambient temperature suitable for operation
`-20 ÷ 45
Angle for useful luminous flux (EPREL)
Sphere 360 degrees
Beam angle in degrees (EPREL)
120
Chromaticity coordinates x i y (EPREL)
0.38|0.377
Colour consistency in McAdam ellipses
≤6
Colour of the light
White
Colour rendering index Ra
80
Colour-tuneable light source (EPREL)
No
Connected light source (EPREL)
No
Contain icon
ReplByProf2+ReplByProf3
Correlated colour temperature
4000
Current
0,091
Dimmable function
Yes
Energy efficiency class 2019/2015
C
EPREL ID
1587242
Form of the product (EPREL)
Source Out
Frequency of the supply voltage
50/60Hz
GPC classification
10005639 - Lighting - permanently mounted
GS1 unit
szt
Height
52
IEC protection class
I
IK protection rating
08
IP protection rating
20
Is the product equipped with an integrated light source? (EPREL)
Yes
Lamp's warm-up time to 60%
1
Length
586
Lifetime L70B50
50000
Luminous efficacy
130
Luminous flux
2600
Mains or non- mains light source (EPREL)
NMLS
Maximum linkable length
60
Mounting type
mixed
Net content of the product
1
Non-directional or directional light source (EPREL)
NDLS
Number of elements in the link
100
On-mode power Pon (EPREL)
17
Power Factor
0,9
Sling length
200
Status
Active (on sale)
Supply voltage range and voltage type
220-240VAC
Survival factor
0.9
The lumen maintenance factor
96
Total link power
2000
Total luminous flux (EPREL)
3060
Useful luminous flux Φuse (EPREL)
3060
Warranty (years)
5
Wattage
20
Width
70
Supplier's product code
204508
Product ID
U-4061460
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
