Joy-iT CAN Bus module for Singleboard Computer
Product Code: SBC-CAN01
Delivery terms
2025-01-21 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description

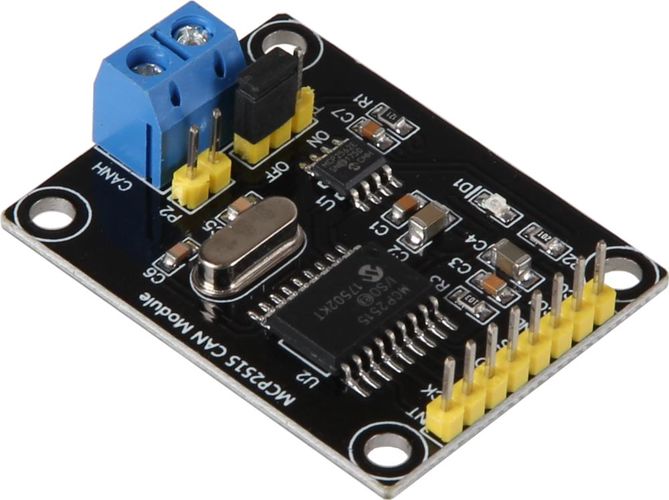

Joy-iT CAN Bus module for Singleboard Computer
Specifications
Supplier product description
This universally applicable CAN module is based on the well-known MCP2515 controller.
It is provided each with a CAN and a SPI interface.
Moreover, it comes with a termination resistor of 120 Ohm which ensures the capacity of propulsion and protects the long-distance data transmission against the signal radiation.
This module is compatible to all Raspberry and Arduino as well as the most of other microcontrollers.
It is provided each with a CAN and a SPI interface.
Moreover, it comes with a termination resistor of 120 Ohm which ensures the capacity of propulsion and protects the long-distance data transmission against the signal radiation.
This module is compatible to all Raspberry and Arduino as well as the most of other microcontrollers.
Technical data:
Model: CAN Module
Chipset: MCP2515, TJA1050
CAN Specification: CAN V2.0B
Communicationspeed: 1 Mb/s
Oscillator: 16 MHz Crystal Oscillator
Termination Resistors: 120 Ω with impedance adjustment (ensures drive capacity and protects long-distance data transmission against signal radiation)
Interface: SPI, CAN
Input Voltage: 5 V
Power Consumption: 5 mA
Standby current: 1 μA
Operating temperature: -40°C - 85°C
Compatible to: Arduino, Raspberry Pi and other common microcontrollers
Supplier parameters
Product code
SBC-CAN01
Brand
Joy-iT
Supplier's product code
SBC-CAN01
Product ID
U-2314981
