Product description

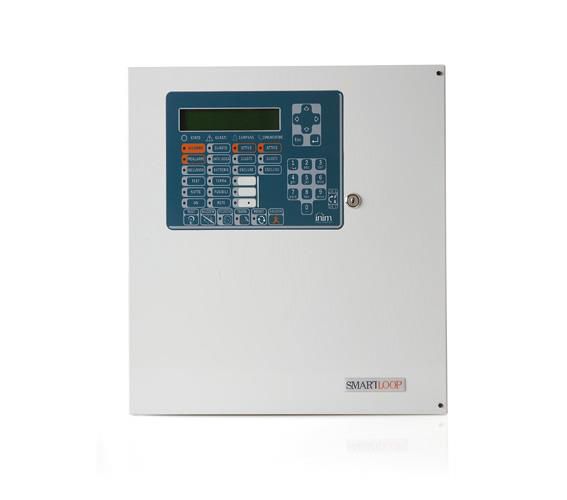

INIM SmartLoop/2080-G
Specifications
SKU
U-2527871
Product code
CASL2080-G
Supplier product description
- 2 loops expandable to 8 (for 2080 expandable models)
- all models in the SmartLoop series are EN54 Approved
- multiprocessor hardware structure
- 32 bit main CPU
- OpenLoop Technology
- HorNet token- ring architecture
- manages up to 30 panel token-ring network via the SmartLoop/NET board (accessory item)
- easy remote access through SmartLAN board (accessory item)
- 2 or 4 wire loop connection
- supports 240 devices per loop
- manages up to 8 remote-control Repeater panels connected to the RS485 Interface
- 3 general purpose NAC outputs
- 1 NAC Alarm output
- 1 NAC Trouble output
- 1 dry contact Alarm relay
- 1 dry contact Trouble relay
- RS485 BUS for Repeater panel connections (SmartLetUSee/LCD and SmartLetUSee/LED);
- manages up to 8 remote-control Repeater panels on the RS485 BUS (maximum wire length between panels 1000m);
- 1 24 V power supply output for external devices;
- 1 24 V resettable output;
- battery shutdown relay for deep discharge conditions;
- RS232 and USB connectors for uploading/downloading data;
- self-enrolling (for loop devices);
- self-addressing (for loop devices);
- manages conventional detectors (through SmartLoop/INOUT board);
- emergency phone call (through SmartLoop/PSTN board);
- large backlit alphanumeric display for easy management of Installer/User interface;
- navigation keys for easy access to menu options;
- fast keys (Test, Beeper, Silence, Reset, Evacuate, Investigate);
- beeper (provides audible signals);
- esystem programming from the control panel;
- code or key access to Level 2 functions (EN54 compliant);
- metal box;
- mains power supply 230Vac ± 10%;
- switching power supply/battery charger 4A @ 27.6Vdc;
- battery housing for two 17Ah, 12V batteries;
- dimensions (HxWxD): 480x470x135mm;
- Weight (without batteries): 8Kg.
