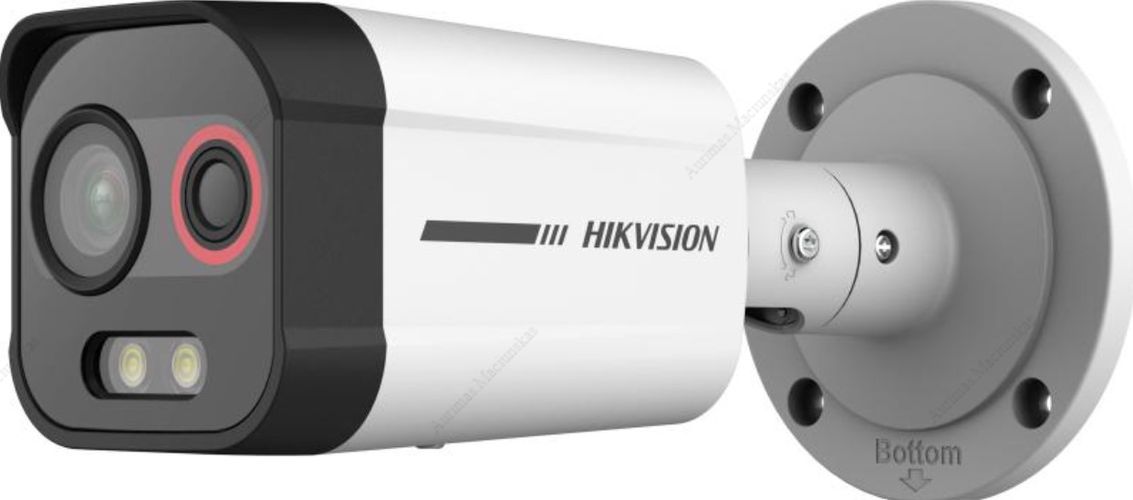

Hikvision thermal bullet DS-2TD2608-2/QA
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Supplier product description
- IP camera DS-2TD2608-2/QA
- Manufacturer: Hikvision
- Type: BULLET
- Technology: THERMOVISOR, bi-spectral
- Thermal resolution: 96 × 72
- NETD 55mk (@ 25 °C, F#=1.1)
- Camera lens: 2.6mm
- Temperature range: -20°C to 150°C, ±8°C accuracy
- Optical camera lens: 6mm
- LED lighting up to 30m
- Light and sound alarm
- Resistance class: IP67
- Has 2x alarm inputs
- Impact resistance class: IK08
- PoE power supply
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution96 × 72
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD< 55 mK (25°C, F1.0)
- Focal Length2.6 mm
- IFOV4.62 mrad
- Field of View25.0° × 18.75° (H × V)
- Min. Focusing Distance0.05 m
- ApertureF1.0
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/1.8" Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0005 Lux @（F1.0，AGC ON）, 0 Lux with Light
- Shutter Speed1 s to 1/100,000 s
- Focal Length6 mm
- Field of View56.0° × 30° (H × V)
- Aperture (Range)F1.0
- WDR120 dB
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- Light SupplementWarm Light
- Light Supplement Distance30 m
- Audible and Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- Audio alarm
Yes
1 preset voice alerts
6 importable user-defined voice alerts
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Video and Audio
- Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288，320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-stream
Thermal:
25 fps (704 × 576, 352 × 288, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +,macOS10.13 +,Safari 12+
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
- Power Consumption
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Dimensions
211.5 mm × 105 mm × 105 mm (8.32" × 4.13\" × 4.13\")
- Weight
869.2 g (1.92 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans20 m
- VCA Range for Vehicles60 m
