Supplier product description

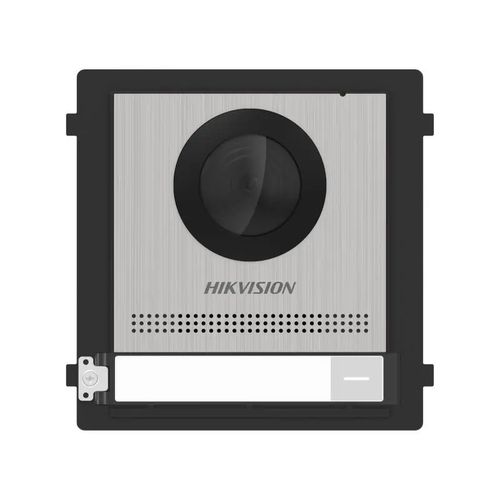

- Modular door station Main unit, needs mounting bracket
- 2MP HD Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- Video intercom to indoor station and master station
- WEB Configuration
- Power output for electronic lock, max to 12 VDC, 500 mA
- System parameters
- Operating systemEmbedded Linux operation system
- ROM32 MB
- RAM256 MB
- CPUEmbedded Processor
- Display parameters
- Screen sizeNA
- Operation methodNA
- TypeNA
- ResolutionNA
- Video parameters
- Supplement lightLow illumination, IR supplement lights
- Video standardH.264
- Lens1
- FOVHorizontal: 146°, Vertical: 82°
- WDR
Support
- Resolution2 MP
- Audio parameters
- Audio compression standardG.711 U, G.711 A
- Audio input
Built-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Fingerprint capacity/
- User capacity2000
- Face capacityNA
- Linked indoor station capacity500
- Event capacity/
- Sub door station capacity16
- Network parameters
- Communication protocolNA
- Wired networkNA
- Wi-FiNA
- BluetoothNA
- 3G/4GNA
- Device interfaces
- Alarm input4 (2 exit butttons and 2 door contacts by default)
- Network interfaceNA
- TAMPER1
- Exit button2 (2 for lock control)
- Door contact input2
- RS-4851 (1 for Hikvision's sub module communication)
- WiegandNA
- TF cardNA
- Alarm outputNA
- Lock control2 (2 relay, max to 30 VDC, 2 A)
- USBNA
- Power interface12VDC power output（12 V, 500 mA Max.）
- Two-wire IP interface1
- General
- Button1
- InstallationSurface mounting & flush mounting
- Indicator0
- 373.5 g
- Protective levelIP65
- Working temperature
-40° C to 60° C (-22° F to 140° F)
- Working humidity
10% to 90%
- Dimensions
100 mm × 98 mm × 42 mm
- Battery/
- Power supplyPowered by KAD704Y or KAD706Y series distributor
- Application environmentOutdoor
- Power consumption≤ 4 W
- LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
Supplier parameters
Product code
PSKDSKD8003YIME2
Category
Door stations
Brand
Hikvision
Supplier's product code
PSKDSKD8003YIME2
Product ID
U-2947777
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
