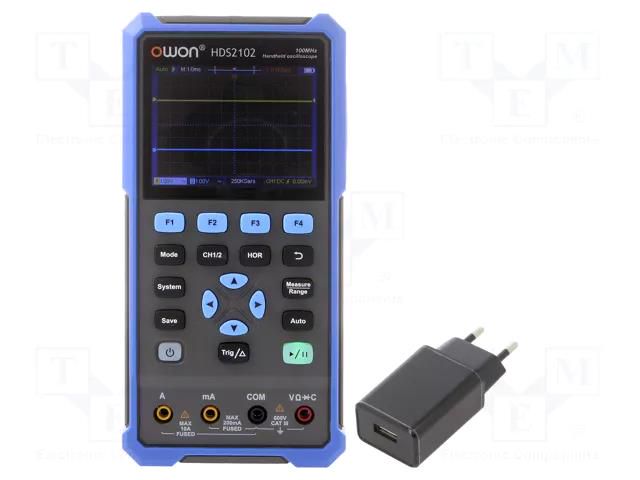

Handheld oscilloscope; 100MHz; 8bit; LCD 3,5"; Ch: 2; 500Msps OWON
Product Code: HDS2102
More similar products
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Handheld oscilloscope; 100MHz; 8bit; LCD 3,5"; Ch: 2; 500Msps OWON
Specifications
SKU
U-2592154
Product code
HDS2102
Supplier product description
Handheld oscilloscope; 100MHz; 8bit; LCD 3,5"; Ch: 2; 500Msps
Supplier parameters
Product code
HDS2102
Supplier's product code
HDS2102
Product ID
U-2592154
AC current measuring accuracy
±(1% + 10 digit)
AC current measuring range
10A
AC voltage measuring accuracy
±(0.8% + 10 digit)
AC voltage measuring range
750V
Additional functions
multimeter
Band
100MHz
Capacitance measuring accuracy
±(3%+ 10 digit)
Capacitance measuring range
200µF
DC current measuring accuracy
±(0.8% + 10 digit)
DC current measuring range
10A
DC voltage measuring accuracy
±(0.3% + 5 digit)
DC voltage measuring range
1kV
Dimensions
198x96x38mm
Input coupling
AC, DC, GND
Input impedance
1MΩ/16pF
Kind of display used
LCD 3,5"
Manufacturer
OWON
Manufacturer series
HDS200
Measurement
AC voltage
Memory record length
8kpts
Number of channels
2
Power supply
rechargeable battery Li-Ion 18650 3,7V 2200mAh x2
Resistance measuring accuracy
±(0.8%+3 digit)
Resistance measuring range
200Ω
Rise time
≤3.5ns
Sampling
500Msps
Standard equipment
case
Type of oscilloscope
handheld oscilloscope
Trigger modes
automatic
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
