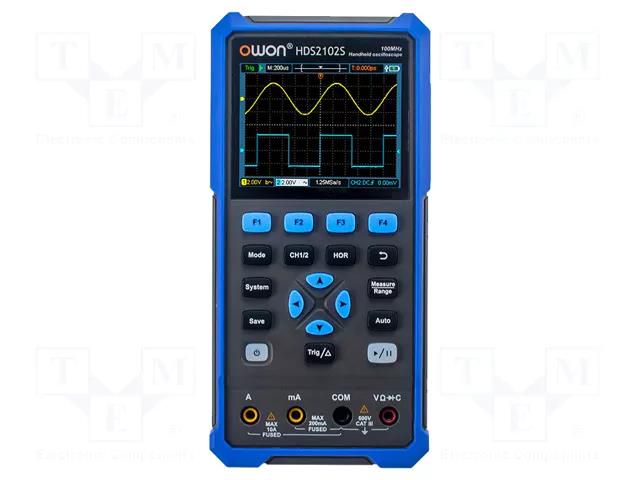

Handheld oscilloscope; 100MHz; 8bit; LCD 3,5"; Ch: 2; 500Msps OWON
Product Code: HDS2102S
More similar products
Delivery terms
2024-11-29 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 81 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Handheld oscilloscope; 100MHz; 8bit; LCD 3,5"; Ch: 2; 500Msps OWON
Specifications
SKU
U-2592155
Product code
HDS2102S
Supplier product description
Handheld oscilloscope; 100MHz; 8bit; LCD 3,5"; Ch: 2; 500Msps
Supplier parameters
Product code
HDS2102S
Supplier's product code
HDS2102S
Product ID
U-2592155
AC current measuring accuracy
±(1% + 10 digit)
AC current measuring range
10A
AC voltage measuring accuracy
±(0.8% + 10 digit)
AC voltage measuring range
750V
Additional functions
function generator
Band
100MHz
Capacitance measuring accuracy
±(3%+ 10 digit)
Capacitance measuring range
200µF
DC current measuring accuracy
±(0.8% + 10 digit)
DC current measuring range
10A
DC voltage measuring accuracy
±(0.3% + 5 digit)
DC voltage measuring range
1kV
Dimensions
198x96x38mm
Input coupling
AC, DC, GND
Input impedance
1MΩ/16pF
Kind of display used
LCD 3,5"
Manufacturer
OWON
Manufacturer series
HDS200
Measurement
AC voltage
Memory record length
8kpts
Number of channels
2
Power supply
rechargeable battery Li-Ion 18650 3,7V 2200mAh x2
Resistance measuring accuracy
±(0.8%+3 digit)
Resistance measuring range
200Ω
Rise time
≤3.5ns
Sampling
500Msps
Standard equipment
case
Type of oscilloscope
handheld oscilloscope
Trigger modes
automatic
Vertical resolution
8bit
Waveform frequency range
0,1Hz...25MHz (sinus waveform)
Waveforms
rectangular
