Extralink SFP 1.25G | SFP to RJ45 Module | 1,25Gbps, 100/1000BASE-T, 100m, EXTRALINK

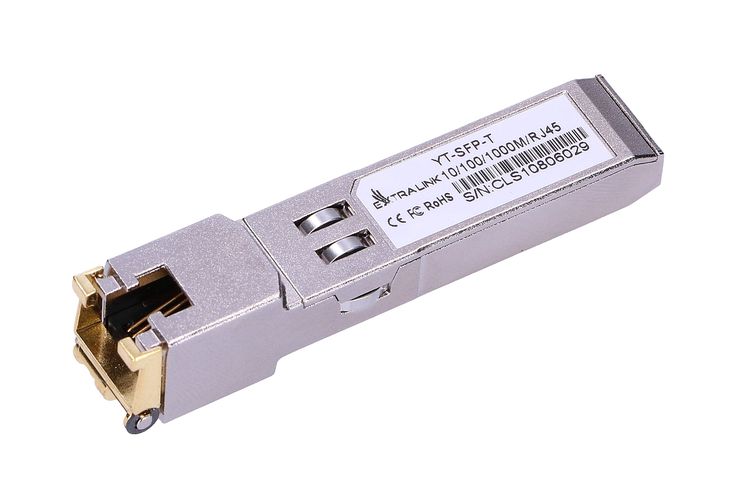

Extralink's cost-effective SFP RJ45 1.25G 100M module

The Extralink SFP RJ45 module with a throughput of 1000 Mb/s is a powerful and cost-effective device that complies with Gigabit Ethernet and 1000-BASE-T standards defined by IEEE 802. 3-2002 and IEEE 802.3ab. The SFP RJ45 cartridge supports a data rate of 1000 Mbps at to 100 meters for Category 5 Ethernet cable and a 1000 Mbps full duplex data link with 5-level pulse amplitude modulation (PAM). All four pairs in the cable are used with a symbolic speed of 250 Mbps for each pair. Extralink SFP RJ45 provides standard serial ID information in accordance with SFP MSA, which can be accessed with A0h address via 2-wire CMOS EEPROM serial protocol. The physical IC can also be accessed via the 2-wire serial bus at the address A0h. The SFP RJ45 module is compatible with most Gigabit SFP ports on network devices. The device has a fully metallic housing and therefore low EMI.

Special features

Special features

• Two-way data links with data rates up to 1.25 Gb/s
• Connecting the SFP without switching off the unit
• Wide temperature range of the housing (0°C to 70°C)
• All-metal housing for low EMI
• Low power dissipation (typically 1.05 W)
• Compact RJ-45 connector assembly
• Access to the physical layer IC via the two-wire serial bus
• 1000 BASE-T operation in host systems with SERDES interface
• 10/100/1000 Mbps compatibility in host systems with SGMII interface
