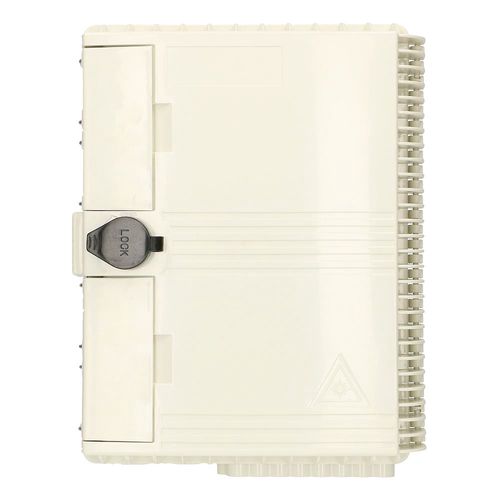

Extralink ELENA 16 CORE - white fibre optic box
Extralink ELENA 16 CORE is a lockable fibre optic locker that allows the connection of 16 fibers placed in a robust, robust SMC housing. It is prepared for outdoor and independent applications. Thanks to the possibility of using adapters type SC simplex and LC duplex, the end user receives a flexible solution - the possibility of using a multifunctional housing. It facilitates access during installation without disturbing existing cable or fibers. In addition to the interchangeable adapters, the housing also offers a sealed buffer, pre-terminated and steel tape-reinforced cables. Each box has integrated mounting positions and a removable bending radius protection.
![](https://www.batna24.com/products/DNXFMKHNLRMMMO/23084.webp)
Features:
Features:
- 16 fibres can be installed
- Removable connection tray for easy installation
- Many adaptor options are available
- It accepts, among other things, distribution cables and cables with pre-clamps
- Protection against bending radius
- Removable door for easy installation
- Can supplied with 16 heat shrink welds and other components
![](https://www.batna24.com/products/DNXFMKHNLRMMMO/23086.webp)
![](https://www.batna24.com/products/DNXFMKHNLRMMMO/23085.webp)
Application:
Application:
- Data centres, premises installations, telecommunications networks
- Ethernet, fiber channel, ATM, LAN, MAN and WAN
- ICT and telecommunications networks
- Wall/post mounting
- Internal and external use
![](https://www.batna24.com/products/DNXFMKHNLRMMMO/23083.webp)
Dimensions:
![16 core optical fibre box](https://www.batna24.com/products/DNXFMKHNLRMMMO/23193.webp)
Cable system:
![cheap fibre optic 16 core box](https://www.batna24.com/products/DNXFMKHNLRMMMO/23189.webp)
![fiber optic box distributor](https://www.batna24.com/products/DNXFMKHNLRMMMO/23190.webp)
Wall-mounted installation:
![where to buy fiber cans](https://www.batna24.com/products/DNXFMKHNLRMMMO/23191.webp)
Post installation:
![where to buy fiber opic box](https://www.batna24.com/products/DNXFMKHNLRMMMO/23192.webp)
Depth | 100 |
Height | 235 |
Housing material | Acrylonitrile butadiene styrene (ABS) |
Mast mountable | Yes |
Number of fibres supported (max) | 16 |
Number of splice trays supported (max) | 16 |
Product colour | White |
Wall mountable | Yes |
Weight | 1.3 |
Width | 315 |
