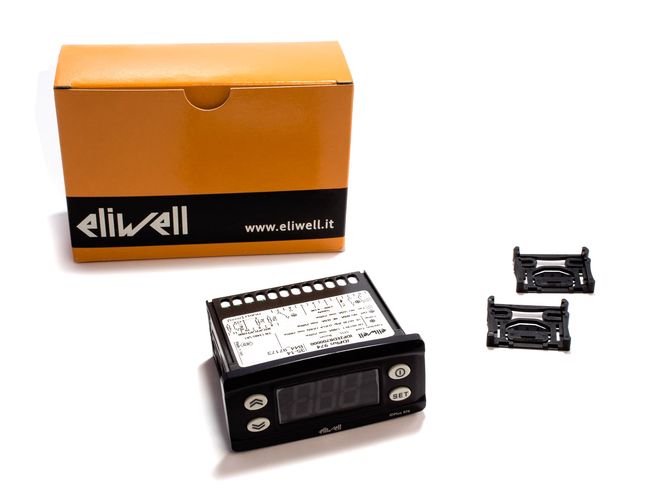

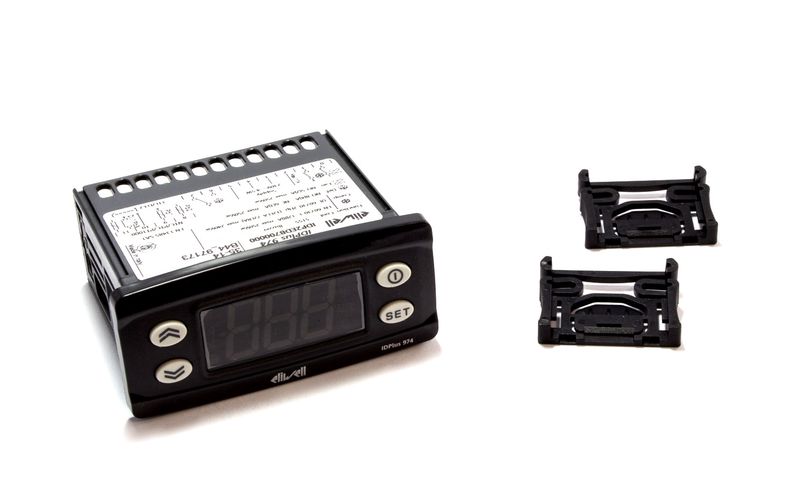

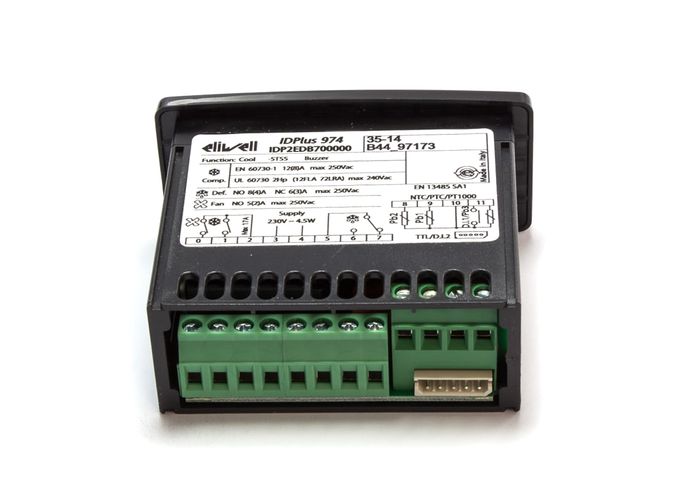

Electronic Controller IDPlus 974 230Vac NTC 2Hp ELIWELL
Product Code: IDPLUS974
Brand
More similar products
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
 Not available | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Weight
0.222 kg.
Brand
Part Number
IDP2EDB700000
Operating Temperature
-5...55°C
Storage Temperature
-30…85°C
Ambient Humidity
10…90% RH (non-condensing)
Power Supply
230Vac
Power Consumption
3W max
Display Range
NTC: -50,0…+110,0 °C
PTC: -55,0…+140,0 °C
Pt1000: -55,0...+150,0 °C
PTC: -55,0…+140,0 °C
Pt1000: -55,0...+150,0 °C
N. Analogue Inputs
2
Analogue Inputs
2x PTC or NTC or Pt1000
N. Digital Inputs
1
Digital Inputs
1x SELV
N. Digital Outputs
3
Digital Outputs
1x SPDT 1/2Hp 8(4)A 250Vac
1x SPST 2Hp 12(12)A 250Vac
1x SPST 5(2)A 250Vac
1x SPST 2Hp 12(12)A 250Vac
1x SPST 5(2)A 250Vac
Display
LED 3 digits + sign
Resolution ( 0.1°C with decimal point )
1 or 0,1°C
Measurement Range
-55,0…+150,0°C
Accuracy
better than 0,5% of full scale + 1 digit
Connectivity
TTL port for connection to UnicardCopy Card or TelevisSystemModBus monitoring device
N. Serial Ports
1
Serial Ports
1x TTL
Installation
panel, 71x29mm
Accessories
Unicard USB/TTL
Functions
HACCP, DCC, Easy Map, COH, DI1 configurable as analogic probe
Weight (g)
230
Width (L)
79
Height (Ht)
37
Depth (P)
59
