Product description

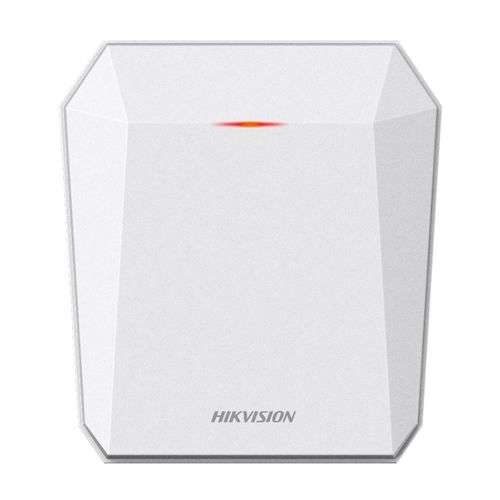

Detector Hik-vision DS-PRP100
Specifications
SKU
U-4116888
Product code
DSPRP100
Supplier product description
- Detector Hik-vision DS-PRP100
- Type: Radar detector
- Number of objects: Up to 32 objects
- Outputs: 4 relay outputs
- Maximum distance: 100m
- Viewing angle: 6.2°
- PTZ support: Up to 4 PTZ
- Frequency: 24GHz
- Working temperature: -40°C ~ 65°C
- Protection class: IK09, IP67
- Detection performance
- Velocity range-8.8 to 8.8 m/s
- Range measurement accuracy± 1.2m
- Radar transmit power<20 dBm
- Date fresh rate10 frames / s
- Detection angle6.2°
- Detection range100m
- Microwave frequency24.05 ~ 24.25 GHz
- Max. Target number32
- Software features
- ScheduleAuto Arm/Disarm Schedule
- Trigger lineUp to 4 Trigger-Lines
- Configuration toolsWeb / iVMS-4200
- Firmware undate toolsWeb / iVMS-4200
- Network encryptionAES-128 encryption
- Exception detectionCommunication failure alarm, anti-moving alarm and tampering alarm
- Hardware features
- Serial portRS232
- Tamper-ProofTampering alarm
- Netowrk interface1 RJ45 10M/100M self-adaptive, PoE
- Electrical characteristics
- Power supplyStandard PoE / 12VDC
- Power interface802.3at standard PoE or 12VDC
- Operation humidity10% to 90%
- Operation temperature-40℃ to 65℃
- Power consumption≤ 8W
- Display
- IndicatorDual-color LED
- General
- IK rateIK09
- IP rateIP67
- Installation methodMultiple installations with different brackets
- Installation height
Installation height: 1.2m to 4m;
Recommended height: 2.5m
- Dimension(WxHxD)206 mm × 228 mm × 61 mm (8.11" × 8.98" × 2.40")
- Anti-corrosionNEMA 4X
- Application scenarioOutdoor
- Shell material
Front panel: plastics
Rear panel: metallic aluminum
- ColorWhite
- BracketMultiple brackets
- Weight1.74 kg
- Device management
- Alarm output4 Relay Outputs(NO/NC)
- Zones16
- Relay output4-ch: 0.5A/125VAC or 1A/30VDC
- Report method
- ProtocolHTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH
Supplier parameters
Product code
DSPRP100
Category
Indoor PIR detec
Supplier's product code
DSPRP100
Product ID
U-4116888
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
