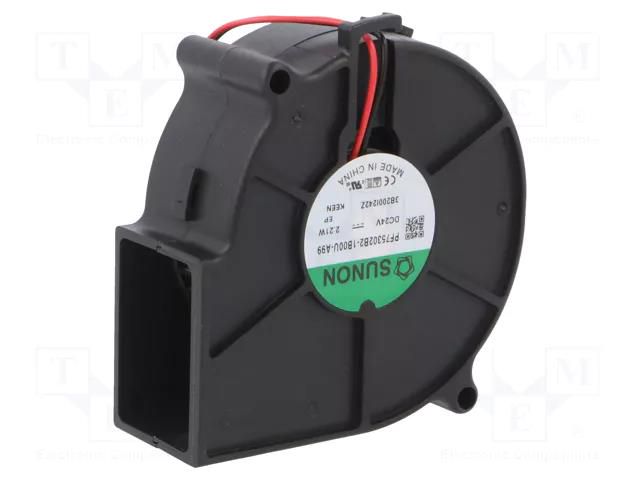

Fan: DC; blower; 24VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; ball SUNON
Product Code: PF75302B2-A99-B
Delivery terms
2024-11-29 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 212 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: DC; blower; 24VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; ball
Useful information
Supplier parameters
Product code
PF75302B2-A99-B
Brand
SUNON
Supplier's product code
PF75302B2-A99-B
Product ID
U-1930428
Additional functions
Autorestart
Cable length
0.295m
Current and power consumption tolerance
±15%
Current rating
80mA
Enclosure material
thermoplastic
Fan dimensions
75x75x30mm
Fan efficiency
23.44m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
blower
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
38.6dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
1.92W
Rotational rate/speed
3000rpm
Supply voltage
24V DC
Type of fan
DC
