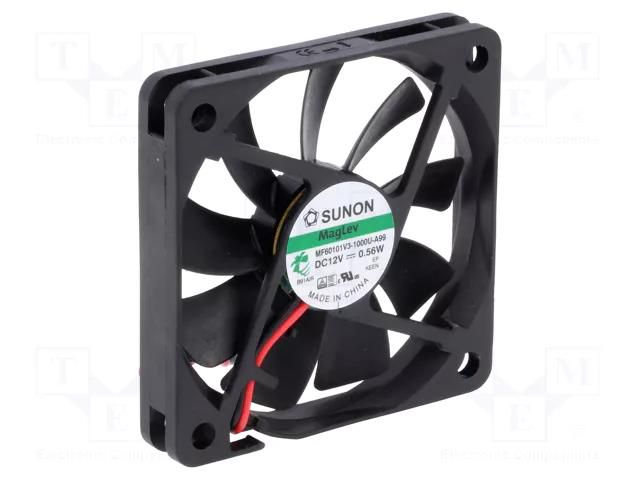

Fan: DC; axial; 12VDC; 60x60x10mm; 20.62m3/h; 21.5dBA; Vapo; 3000rpm SUNON
Product Code: MF60101V3-A99-A
Delivery terms
2024-07-25 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 200 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: DC; axial; 12VDC; 60x60x10mm; 20.62m3/h; 21.5dBA; Vapo; 3000rpm
Useful information
Supplier parameters
NomNr
MF60101V3-A99-A
Additional functions
Autorestart
Cable length
0.29m
Current and power consumption tolerance
±15%
Current rating
54mA
Enclosure material
thermoplastic
Fan dimensions
60x60x10mm
Fan efficiency
20.62m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
21.5dBA
Operating temperature
-10...70°C
Operating voltage
8...13.8V
Power consumption
0.76W
Rotational rate/speed
3000rpm
Static pressure
2.03mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
Supplier's product code
MF60101V3-A99-A
Product ID
U-256183
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
