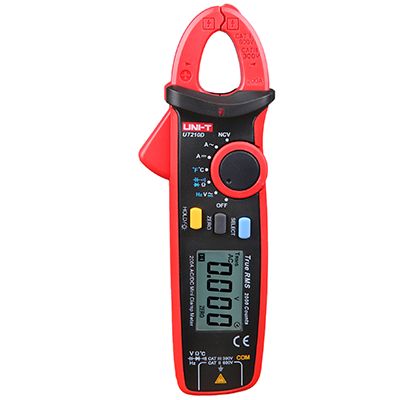

Current Clamp UT210D CATII, CATIII, mini UNI-T
Product Code: UT210D
TOP Product
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
| 1 pcs | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| >10 pcs | Central Warehouse |
| 1 pcs | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
| Specifications | Range | Best Accuracy |
| Model | UT210D | |
| AC Current (A) | 20A/200A | ±（2.5%+8) |
| DC Current (A) | 20A/200A | ±（2%+3) |
| AC Voltage (V) | 2V/20V200V/600V | ±（1%+3) |
| DC Voltage (V) | 200mV/2V/20V200V/600V | ±（0.7%+3) |
| Resistance (Ω) | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ | ±（1%+2) |
| Frequency（Hz) | 10Hz/100Hz/1kHz/10kHZ/60kHz | ±（0.1%+4) |
| Capacitance (F) | 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF | ±（4%+5) |
| Temperature（℃） | -40℃～1000℃ | ±(1%+3) |
| Temperature（℉） | -40℉～1832℉ | ±(1.5%+5) |
| Features | ||
| Display Count | 2000 | |
| Auto Range | √ | |
| Jaw Capacity | 17mm | |
| True RMS | √ | |
| Diode | Around 3.0V | |
| NCV | √ | |
| Data Hold | √ | |
| Zero Mode | √ | |
| LCD Backlight | √ | |
| Auto Power Off | Around 15 Minutes | |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤2.5V | |
| Input Protection | √ | |
| Input Impedance for DCV | ≥10MΩ | |
| General Characteristic | ||
| Power | AAA 1.5V × 2 | |
| LCD Size | 39.3mm × 26.5 mm | |
| Product Net Weight | 170g | |
| Product Size | 175mm × 60mm × 33.5mm | |
| Standard Accessories | Batteries, Test Lead, Point Contact Temperature Probe | |
Specifications
SKU
233680
Weight
0.332 kg.
Barcodes
6935750521045; 6935750521199
Warranty period (months)
12
Brand
Product code
UT210D
