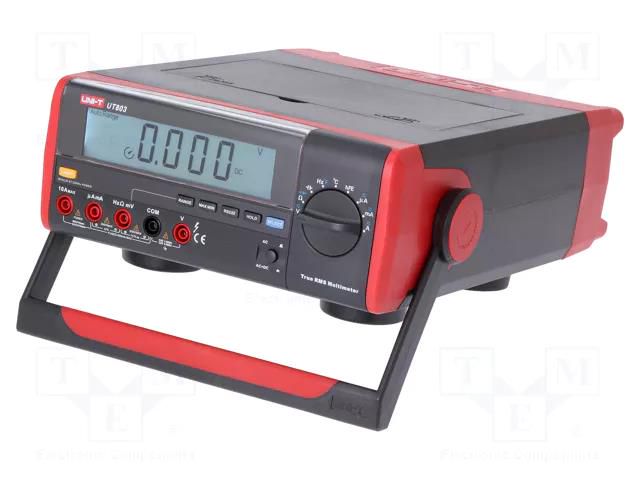

Benchtop multimeter; LCD; VDC: 600mV,6V,60V,600V,1kV; -40÷1000°C UNI-T
Product Code: UT803
Delivery terms
2024-07-25 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 8 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Benchtop multimeter; LCD; VDC: 600mV,6V,60V,600V,1kV; -40÷1000°C
Useful information
Supplier parameters
NomNr
UT803
Product ID
U-371692
AC current measuring accuracy
±(1% + 5 digit)
AC current measuring range
10A
AC voltage measuring accuracy
±(0.6% + 5 digit)
AC voltage measuring range
600V
Capacitance measuring accuracy
±(2%+ 5 digit)
Capacitance measuring range
6nF
Continuity test
acoustic indication
DC current measuring accuracy
±(0.5% + 3 digit)
DC current measuring range
600µA
DC voltage measuring accuracy
±(0.3% + 2 digit)
DC voltage measuring range
600V
Dimensions
105x240x310mm
Diode test
2.7V
Display parameters
3 5/6 digits
Frequency measuring accuracy
±(0.1%+3 digit)
Frequency measuring range
60kHz
Illumination
yes
Interface
USB
Kind of display used
LCD
Manufacturer
UNI-T
Measurement
AC voltage
Measuring instrument features
automatic power-off
Power supply
battery R14 1,5V x6
Related items
TP200
Resistance measuring accuracy
±(0.5%+2 digit)
Resistance measuring range
600Ω
Software
included
Standard equipment
set of test leads with probes
Supply voltage
230V AC
Temperature measurement accuracy
±(1% + 3 digit)
Temperature measuring range
-40...1000°C
Type of meter
benchtop multimeter
True effective value measurement
True RMS AC
Brand
UNI-T
Supplier's product code
UT803
