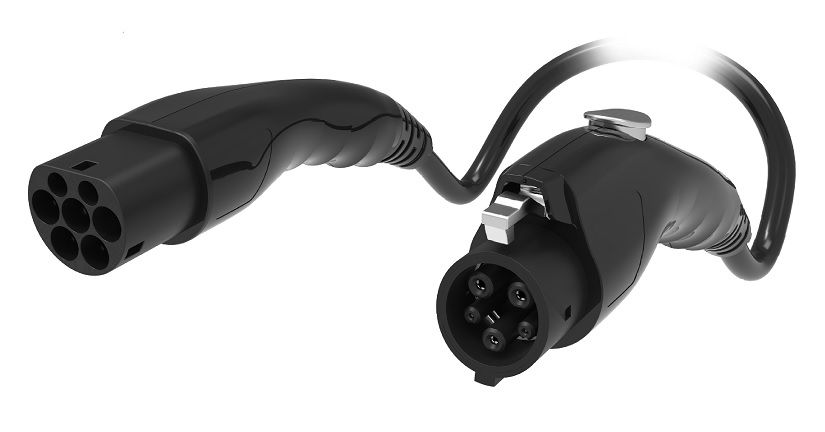

AC type 1-type 2, single phase,16A 250V,5m black straight cable with protective caps, C line, housing color black, IP54
Pickup in department 1-5 b.d.
 4 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
Quantity in shop
| 4 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Product description
Environmental conditions
Maximum altitude 5000m(Above sea level )
Ambient temperature (operation) -30 °C ~ 50 °C
IP class IP54（protection cover）
Electrical characteristics
Maximum charge power 4KW
Phase 1
Power pin quantity 3
Rated current of high-power contacts 16
Power contact rated voltage 250
Quantity of signal contacts 2
Signal contact rated current 2
Signal contact rated voltage 24
30
Resistance coding 150Ω
300Ω
Temperature measurement PT1000
Mechanical properties
Insertion force < 100N
Pull out force < 100N
Marking material
Shell color black
EV charger color black
Cover color black
Customization basis Provided according to customer requirements
Handle material area Plastic
Protective cover material Soft plastic
Flammability rating V0
Contact surface material Ag
Cable
Cable composition 2 x6 mm² + 1 x 10 mm² + 2× 0.75 mm²
3*2.5mm²+1*0.75mm²
3*10AWG+1*18AWG
Wiring standard EN50620
IEC62893.3
Wiring level 5 class
Certification CE
CB
TUV
Cable outer diameter 10.5±0.5mm
Wire type Straight line
Cable resistance ≤ 0.00798 Ω/m (Based on the power core, at an ambient temperature of 20°C)
Outer sheath,color black
Minimum bend radius 63mm
Outer sheath, material PUR
Dimension
Vehicle connector height 101mm(Vehicle charging connector)
Vehicle connector depth 249.2mm(Vehicle charging connector)
Cable length 5000±50mm
Strip length 100±10mm
Specifications
Other products of the same brand
Other products in this category
Experimental product description generated by artificial intelligence
DEGSON ELECTRONICS AC Charging Cable - Type 1 to Type 2
This DEGSON ELECTRONICS charging cable provides a reliable connection for your electric vehicle. It's a single-phase cable, perfect for home or workplace charging.
Key Features:
- Connector Type: Type 1 to Type 2
- Cable Length: 5 meters
- Amperage: 16A
- Voltage: 250V
- Housing Color: Black
- Ingress Protection: IP54 (protected against splashing water)
- Cable Type: C line
- Protective Caps: Included for added durability and safety
Functionality and Use:
This EV charging cable is designed to safely and efficiently charge electric vehicles equipped with Type 2 inlets from Type 1 outlets. Its 5-meter length offers flexibility for various charging scenarios. The IP54 rating ensures protection against water splashes, making it suitable for outdoor use.
Why Choose This Product?
This DEGSON ELECTRONICS charging cable offers a combination of quality, safety, and convenience. The robust construction and protective caps ensure long-lasting performance, while the IP54 rating provides peace of mind in various weather conditions. Choose this cable for a reliable and durable charging solution for your electric vehicle.
Specifications:
| Parameter | Value |
|---|---|
| Connector Type | Type 1 to Type 2 |
| Cable Length | 5m |
| Phase | Single Phase |
| Amperage | 16A |
| Voltage | 250V |
| Ingress Protection | IP54 |
| Cable Type | C line |
| Housing Color | Black |
