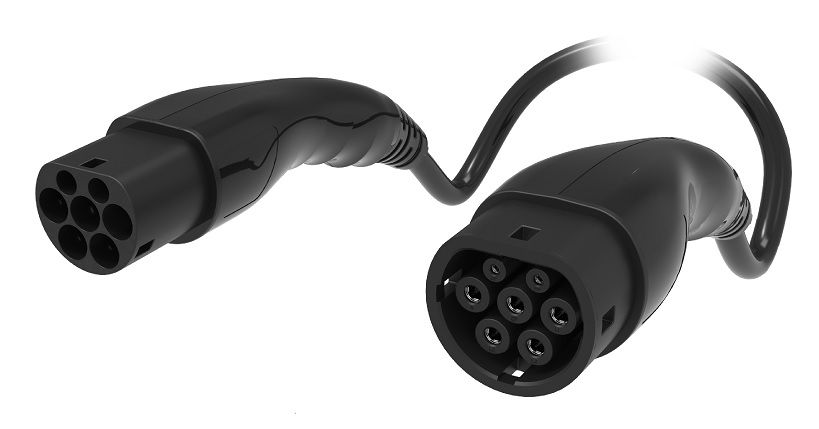

AC type 2-type 2, triple phase,16A 440V,5m black straight cable with protective caps, C line, housing color black, IP54
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
IMPORTANT: The office will be closed on 10 January 2025 due to an inventory.
Quantity in shop
| >10 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Product description
Dimension
width 70mm
Vehicle connector height 79mm(Vehicle charging connector)
Vehicle connector depth 222.3mm(Vehicle charging connector)
Cable length 5000±50mm
Strip length 100±10mm
Environmental conditions
Ambient temperature (operation) -30 °C ~ 50 °C
Maximum altitude 5000m(Above sea level )
IP class IP54（protection cover）
Electrical characteristics
Maximum charge power 13KW
Phase 1
Power pin quantity 3
Rated current of high-power contacts 16
Power contact rated voltage 480
Quantity of signal contacts 2
Signal contact rated current 2
Signal contact rated voltage 30
Resistance coding 680Ω
Mechanical properties
Insertion force < 100N
Pull out force < 100N
Marking material
Shell color black
EV charger color black
Cover color black
Customization basis Provided according to customer requirements
Handle material area Plastic
Protective cover material Soft plastic
Flammability rating V0
Contact surface material Ag
Cable
Cable composition 5*2.5mm²+1*0.75mm²
Wiring standard EN50620
IEC62893.3
Wiring level 5 class
Certification CE
CB
TUV
Cable outer diameter 13±0.5mm
Wire type Straight line
Cable resistance ≤ 0.00798 Ω/m (Based on the power core, at an ambient temperature of 20°C)
Outer sheath,color black
Minimum bend radius 78mm
Outer sheath, material PUR
Specifications
Experimental product description generated by artificial intelligence
DEGSON ELECTRONICS AC Type 2 to Type 2 Charging Cable
This DEGSON ELECTRONICS AC Type 2 to Type 2 charging cable is a high-quality, three-phase EV charging cable designed for convenient and efficient charging of electric vehicles.
Key Features and Specifications
- Connector Type: Type 2 to Type 2
- Phase: Three-phase
- Current: 16A
- Voltage: 440V
- Cable Length: 5m
- Cable Color: Black
- Housing Color: Black
- Ingress Protection: IP54
- Cable Type: Straight
- Protective Caps: Included
- C Line: Yes
Functionality and Use
This cable is ideal for charging electric vehicles equipped with Type 2 inlets. The three-phase design allows for faster charging speeds compared to single-phase options. The 16A current rating ensures efficient power transfer. The 5-meter cable length provides flexibility for various charging scenarios.
Why Choose This Product?
The DEGSON ELECTRONICS AC Type 2 to Type 2 charging cable offers a reliable and durable solution for your EV charging needs. Its robust construction, IP54 rating for protection against dust and water splashes, and protective caps ensure long-lasting performance. The inclusion of the C-line ensures compatibility with a wide range of electric vehicles. Choose this cable for a safe, efficient, and convenient charging experience.
Synonyms
This product may also be referred to as: EV charging lead, electric vehicle charging cable, Type 2 EV charging cable, 3-phase EV charging cable, Mode 3 EV charging cable.
