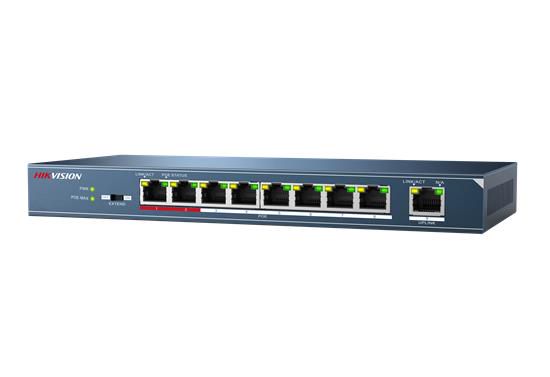

9 ports switch Hikvision DS-3E0109P-E(C)
Product Code: SWITCHDS3E0109PEC
Delivery terms
2024-07-19 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
- Switch 9 ports
- L2
- Unmanaged
- 8 10/100M RJ45 PoE ports
- 1 10/100M RJ45 uplink port
- 802.3af/at
- PoE power budget 115W
- Max. 250m long distance transmission
- 6KV surgy protection
| Network parameters | ||
|---|---|---|
| Port number: | 9 | |
| Port type: | Ethernet Port | |
| Standard: | IEEE802.3,802.3u,802.3x,802.3af,802.3at | |
| Forwarding mode: | Store-and-forward | |
| Working mode: | ExtendOn:250m,10Mbps,CAT5e ExtendOff:100m | |
| Ports for long-distance transmission: | 250 m | |
| MAC address table: | 4k | |
| Switching capacity: | 1.8Gbps | |
| Packet forwarding rate: | 1.34Mpps | |
| PoE power supply | ||
| PoE standard: | IEEE802.3af,IEEE802.3at | |
| PoE port: | 1 to 8 | |
| PoE power budget: | 123W | |
| Max. power consumption: | 127W | |
| General | ||
| Net weight: | 0.57kg | |
| Dimension (L × H × D): | 235mm*103mm*27mm | |
| Operating temperature: | Temperature:0℃-40℃ | |
| Storage temperature: | Temperature:-40℃-70℃ | |
| Operating humidity: | Humidity:10%-90%,non-condensing | |
| Storage humidity: | Humidity:5%-90%,non-condensing | |
| Power supply: | 51VDC,2.5A | |
| Power consumption in idle: | ≤127W | |
Supplier parameters
NomNr
SWITCHDS3E0109PEC
Category
Swit
Brand
Hikvision
Supplier's product code
SWITCHDS3E0109PEC
Product ID
U-2529429
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
