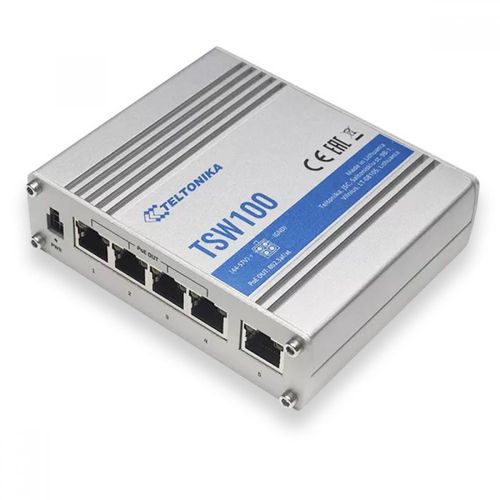

Teltonika TSW100 - industrial, unmanaged PoE switch, 4 PoE ports, 802.3af/at, 60W power
TSW100 is the first industrial unmanaged switch from Teltonika Networks. It is equipped with five Gigabit Ethernet ports, of which four support IEEE802.3af and IEEE802.3at Power-over-Ethernet (PoE) standards. This rugged switch is ideal for professional high-bandwidth uses where both reliable data connection and power supply are required.
PoE switch for industrial applications
The TSW100 switch enables power supply centralization, providing up to 30 watts of power per port and reducing the costs associated with power installation. It has 10/100/1000 Mb/s Ethernet ports and can operate in temperatures from -40 °C to +75 °C, making it an economical high-bandwidth solution for industrial Ethernet networks.
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 5x 10/100/1000BaseTX (RJ45) |
| Number of PoE ports | 4x [802.3af/at (1G)] |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61 |
| DC input voltage | 7 - 58 |
| Depth | 95 |
| Harmonized System (HS) code | 85176990 |
| Height | 32 |
| Housing material | Aluminium |
| Jumbo frames | 9216 |
| LED indicators | Power, Status |
| MAC address table | 2000 |
| Management | No |
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3az |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -40 - 75 |
| Packet buffer memory | 128 |
| Power (W) | 60 |
| Power consumption (max) | 129 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 |
| Product colour | Blue, Metallic |
| Switching layer | 2 |
| Total Power over Ethernet (PoE) budget | 120 |
| Type of case | Metal |
| Width | 115 |
