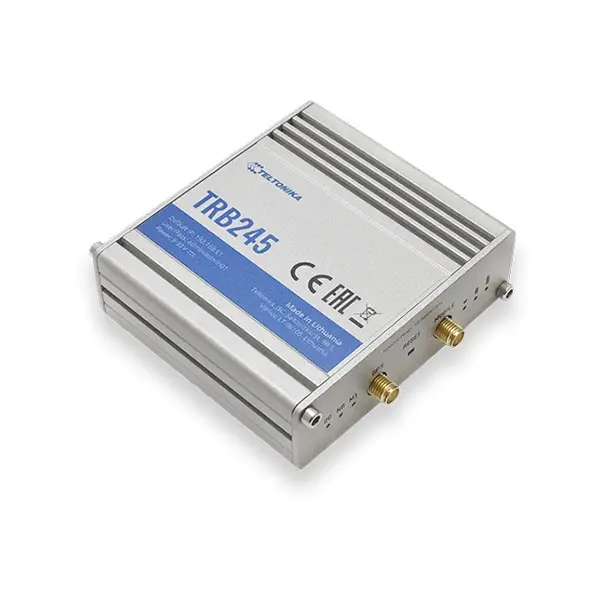

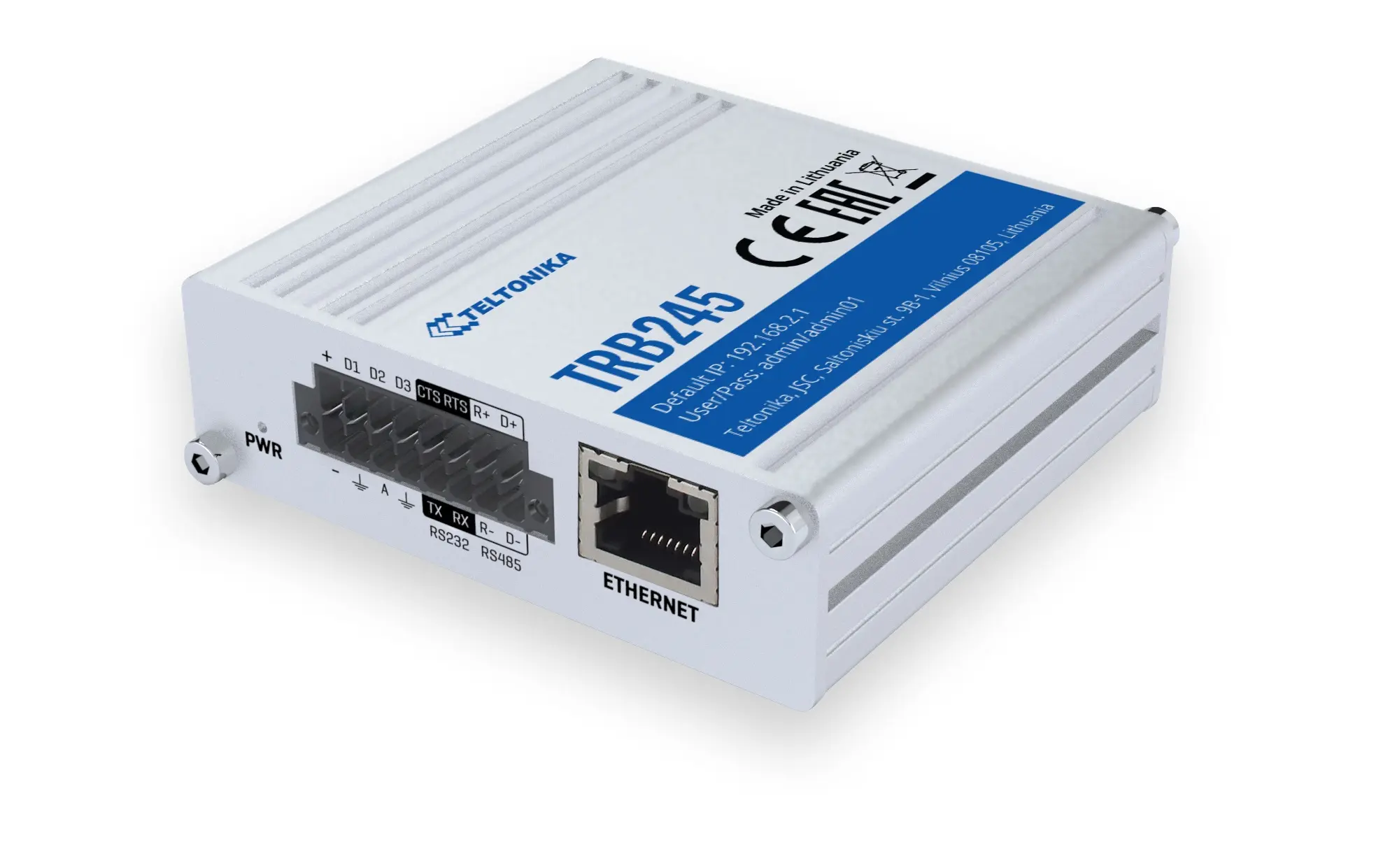

Teltonika TRB245 gateway
Teltonika's TRB245 network gateway is an industrial gateway that is an all-in-one solution to realize machine-to-machine (M2M) communication technology. This model is equipped with digital and analog inputs / outputs, RS232 and RS485 interfaces, RJ45 Fast Ethernet port. The throughput of the device in 4G/LTE Cat4 networks reaches 150 MB/s. Support for 2 SIM cards translates to a foolproof connection, thanks to backup communication channels.
Wide range of applications
The Teltonika TRB245 network gateway is equipped with a GNSS receiver necessary for tracking navigation parameters when using the device on moving objects. Built-in different types of data exchange interfaces ensure the gateway's compatibility with a proprietary remote management system.
Excellent protection against external influences
The device is designed to operate in extreme conditions (on the street, in vehicles), because of this its housing is made of aluminium resistant to corrosion and physical damage. Reliability of the gateway is also ensured by handling the supply voltage in a wide range(from 9 to 30 V).
Main features and benefits
Main features and benefits
- Connectivity in 4G / LTE (Cat 4), 3G, 2G
- Dual SIM with automatic failover, backup WAN and other switching scenarios

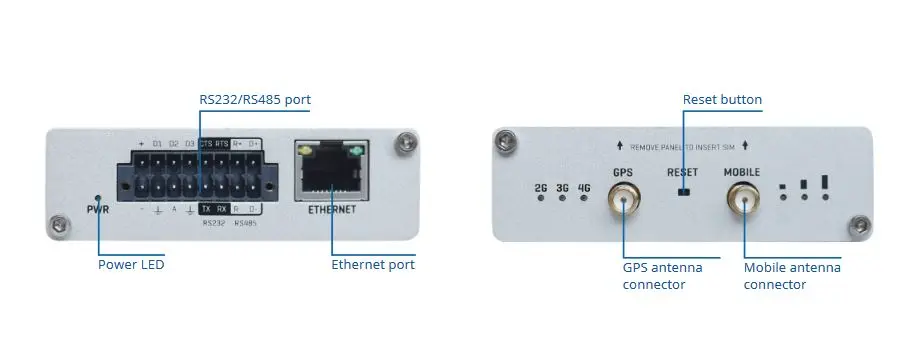

- Serial ports Serial communication interfaces RS232 / RS485
- 9-30 V - wide range of supported supply voltages
- I/O - multiple inputs and outputs for remote monitoring and management
- Global Navigation Satellite System GNSS and Geofence
| LTE category | Cat.4 (150Mb/s Download, 50Mb/s Upload) |
| Number of LAN ports | 1x 10/100BaseTX (RJ45) |
| Operating frequency | LTE |
| Certification | CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61 |
| Console port | RS-232 |
| Depth | 25 |
| DMZ support | Yes |
| Dual SIM | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 |
| Forwarding rate | 150 |
| Harmonized System (HS) code | 85176990 |
| Height | 74 |
| LED indicators | Yes |
| LTE bands | B1 (2100MHz) |
| LTE bands | B3 (1800MHz) |
| LTE bands | B7 (2600MHz) |
| LTE bands | B8 (900MHz) |
| LTE bands | B20 (800MHz) |
| LTE bands | B28A (700 MHz) |
| LTE bands | B38 (2600MHz) |
| LTE bands | B40 (2300MHz) |
| LTE bands | B41 (2500 MHz) |
| Management protocols | SNMP |
| Network address translation (NAT) | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -40 - 75 |
| Power LED | Yes |
| Product colour | Grey |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| RS-232 ports | 1 |
| Safety | IEC 62368-1:2014, EN 50385:2017, EN 62232:2017 |
| Serial interface type | RS-232/485 |
| SIM card slot | Yes |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned) |
| VLAN support | Yes |
| Weight | 165 |
| Width | 83 |
