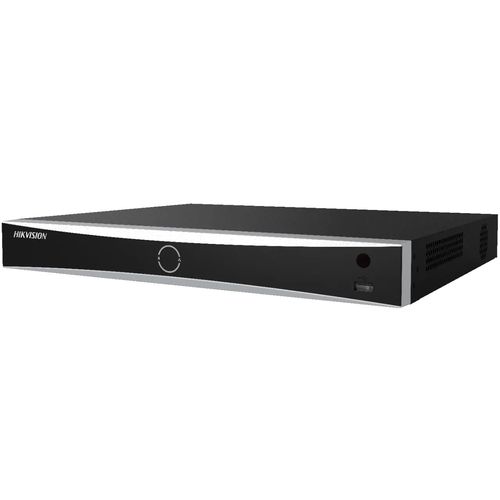

Сетевой видеорегистратор NVR, 2 HDD, 8 каналов, до 8Мпикс, Hikvision

Характеристики

• До 8 входов для IP-камер, plug & play с 8 интерфейсами Power-over-Ethernet (PoE)

• Видеоформаты H.265+/H.265/H.264+/H.264

• Возможность декодирования до 2-ch@12 MP или 3-ch@8 MP или 6-ch@4 MP или 12-ch@1080p

• До 80 Мбит/с входящей полосы пропускания

• Использование технологии Hikvision Acusense для минимизации ручного труда и затрат на обеспечение безопасности

Технические данные

Описание переведено с помощью автоматического переводчика. Если вы заметите какие-либо несоответствия, пожалуйста, сообщите нам по электронной почте [email protected].

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

• Facial Recognition
• Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance1-ch human face capture
• Face Picture Comparison4-ch face picture comparison alarm

• Motion Detection 2.0
• Human/Vehicle Analysis8-ch

• Video and Audio
• IP Video Input8-ch
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth160 Mbps
• HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA independent output
• CVBS OutputN/A
• Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Two-Way Audio1-ch, RCA (Linear, 1 KΩ)

• Decoding
• Decoding FormatH.265/H.265+/H.264+/H.264
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback8-ch
• Decoding Capability

  AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

  AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE
• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 80 W
• StandardIEEE 802.3af/at

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each HDD
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out4/1

• General
• Power Supply48 VDC, 2.5 A
• Consumption≤ 15 W (without HDD, and PoE off)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
• ≤ 3 kg (without HDD, 6.6 lb.)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
