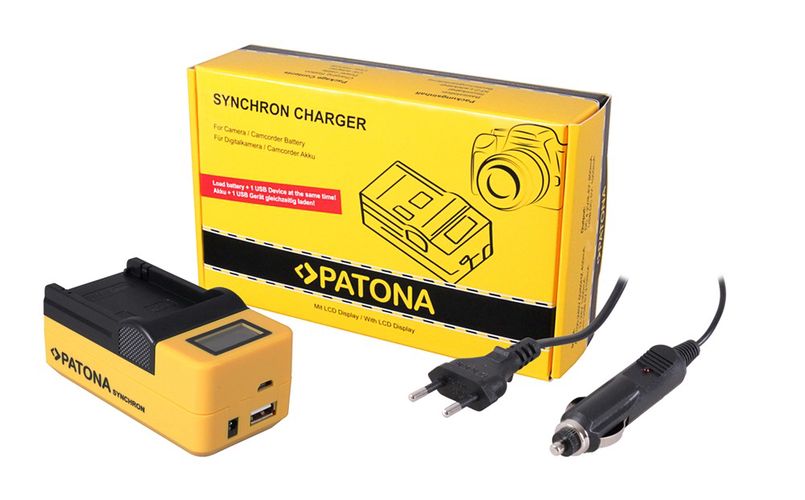

PATONA Synchron USB Charger f. Panasonic VBK 180 with LCD

PATONA Synchron USB Charger f. Panasonic VBK 180 with LCD

The exclusive PATONA Synchron USB Charger f. Panasonic VBK 180 is capable to charge a battery and another device over the USB-Output at the same time.
The LCD Display shows the current charge level of the battery. It doesn’t matter if it is connected to a power source or not.
It is possible to use a 100-240V wall socket, 12-24V Car charger or 5V Micro-USB to power the device.
The build in Microchip protects the battery from damage due to overheating and overload.

Compatible to following batteries:
Panasonic VBK 180, VBK 360 , VBK180, VBK360, VBL090, VWVBK180, VW-VBK180, VWVBK180K, VW-VBK180-K, VWVBK360, VW-VBK360, VWVBK360K, VW-VBK360-K, VWVBL090, VW-VBL090, VWVBL090E, VW-VBL090E, VWVBL090EK, VW-VBL090E-K

Compatible model number:
Panasonic
H H100, H101, H95
HC HCV700, HC-V700, HCV700M, HC-V700M
HD HDCHS60
HDC HDC-HS60, HDCSDX , HDC-SDX
HS HS80
S S45, S50, S70, S71
SD SD40, SD60, SD66, SD80, SD90, SD99, SDX1
SDR SDRH85, SDR-H85, SDRS50, SDR-S50, SDRS50A, SDR-S50A, SDRS50K, SDR-S50K, SDRS50N, SDR-S50N, SDRT50S, SDR-T50S
T T50, T55, T70, T71, T76
TM TM40, TM55, TM60, TM80, TM90

Technical Data:
Input:
AC 100V-240V 50/60Hz400mA (max)
DC 12-24V 1300mA (min)
Micro USB 5V 1000mA

Output:
DC 4,2V / 8,4V 800mA
USB Output: DC 5V 1000mA

Attention: As a safety measure the USB-Output will automatically deactivated if Micro-USB is used as input to power the device.

Pictures are only for illustration purposes! Delivery may vary.
