Спецификации
Описание товара от поставщика

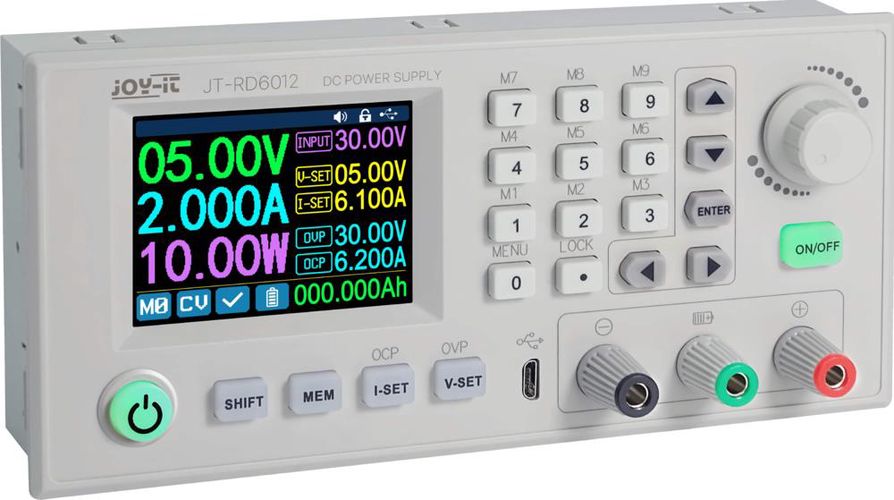

Thanks to its compact design and variable voltage input, the RD6012 is highly integrable and ideally suited for your own projects.
For this purpose, a variety of DC sources (e.g. industrial switching power supply, batteries, existing power supplies) between 0 and 70 volts can be used.
With the help of the intuitive control panel, up to 9 different DC voltages can be programmed, stored and recalled, even individual settings of various protection and limiting functions ( e.g. overvoltage protection ) can be programmed.
The corresponding values can be set very conveniently via the keypad and / or the rotary control and are clearly displayed thanks to the high-resolution 2.4" colour display.
The RD6012 also offers you a charging function for accumulators, which enables individual charging currents depending on the accumulator voltage ( e.g. 3.7 volts ) and accumulator current ( e.g. 1000 mAh ).
Because high loads generate heat, the laboratory power supply has an additional active fan and temperature sensor, which ensure that the voltage output automatically switches off for protection when a temperature of 80°C is reached.
The individual Joy-iT firmware provides you with various language settings (German, English, French) in the main menu.
Thanks to the integrated microUSB interface and the optionally available Wifi module, the RD6012 can communicate and be operated with a PC, tablet or smartphone using the appropriate software.
Furthermore, a metal case ( JT-RD6012-Case01 ) is available, in which all components ( RD6012, Wifi interface and industrial power supply unit ) are accommodated.
Technical data:
Special features: Battery charging function, value input comfortable via keypad, Overcurrent protection/Overvoltage protection adjustable, integrated RTC (CR1220 battery needed), NTC-Temperature sensor
Input voltage: 6 - 70 V
Output voltage: 0 - 60 V
Output current: 0 - 12 A
Output power: 0 - 720 W
Voltage resolution: 0.01 V
Current resolution: 0.01 A
Capacity measuring range: 0 - 9999.99 Ah
Energy measuring range: 0 - 9999.99 Wh
Residual ripple: 100 mV(pp) (at maximal capacity)
Display: 2.4 Inch LCD
optional Accessoires: Case, WiFi module
Working temperature range: -10 - 40 °C
