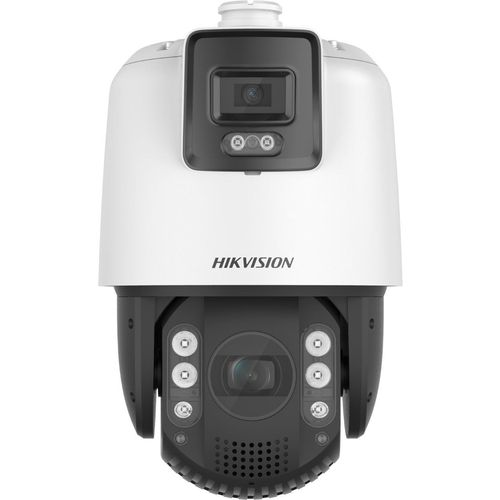

Hikvision TandemVu PTZ DS-2SE7C144IW-AE(32X/4)(S5)
Сроки доставки
Товар заказывается со склада поставщика. Если поставщик не сможет доставить данный товар до указанной даты, мы информируем Вас по электронной почте.
 Доступно | Склад поставщика |
Доставка на дом
Доставка на дом
После передачи товара курьеру мы сообщим вам об этом по электронной почте.
Более 25,00 € (Заказы до 1000 кг) | Бесплатно |
К 25,00 € (Заказы до 1000 кг) | 4,50 € |
Получение в почтомате
Получение в почтомате
3,50 €
Описание товара от поставщика
- 1/2.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 32× optical zoom and 16× digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
- Expansive night view with up to 200 m IR distance
- Supports 24 VAC & Hi-PoE
- Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable
- Camera
- Image Sensor[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
- Min. Illumination
[panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR;
[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Slow Shutteryes
- Focussemi-auto;manual;auto
- Day & NightICR
- Day/Night Switchday, night, auto, scheduled-switch
- BLCyes
- WDR120 dB WDR
- HLCyes
- 3D DNRyes
- Defogyes
- EISyes
- Regional Exposureyes
- Regional Focusyes
- Image Settingssaturation;brightness;contrast;sharpness
- Image Parameters Switch[panoramic channel]: yes; [PTZ channel]: yes
- White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
- Digital Zoom16x
- Optical Zoom32x
- Privacy Maskmosaic mask ;mask color configurable;polygon region ;[panoramic channel] 8 masks, [PTZ channel] 24 masks
- SNR＞52dB
- General Functionmirror, password protection, watermark, IP address filter
- Lens
- Focal Length[panoramic channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
- Zoom Speed[PTZ channel]: approx. 5.6 s
- FOV
[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°;
[PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)
- Aperture[panoramic channel]: F1.6; [PTZ channel]: F1.5
- Illuminator
- IR Distance[PTZ channel]: up to 200 m; [panoramic channel]: up to 30 m
- Visual Alarm30 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional Zoomyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-off Memoryyes
- Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskpreset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output;关闭
- Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected
- Video
- Max. Resolution[panoramic channel]: 2560 × 1440; [PTZ channel]: 2560 × 1440
- Stream Typemain stream;sub-stream;third stream
- Main Stream
[panoramic channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
[panoramic channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
[panoramic channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265;H.264;MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typebaseline profile;main profile;high profile
- H.265 Typemain profile
- H.264+yes
- H.265+yes
- SVCyes
- ROI主码流、子码流、第三码流支持8块ROI区域;main stream, sub-stream and third stream respectively support eight fixed areas;dynamic target tracking
- Audio
- Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM;AAC
- Audio Bit rateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filteringyes
- Smart Features
- Face CaptureSupport detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
- Basic Eventmotion detection;alarm input;alarm output;video tampering alarm;exception
- Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection
- Smart Trackingmanual tracking;event tracking;panorama tracking;auto-tracking;tracking takeover
- Smart RecordANR;Dual-VCA
- Alarm Linkagesmart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;audible warning;white light flashing
- Warning and Alertwhite light and audible warning
- Network
- Network StorageNAS (NFS, SMB/ CIFS); ANR;ANR
- ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
- APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- Simultaneous Live View20
- User/Host32
- Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- ClientiVMS-4200;Hik-Connect
- Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Interface
- Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Alarm Input2 alarm inputs
- Alarm Output1 alarm output
- Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
- General
- Power24 VAC, Hi-PoE
- Power Consumption and CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
- Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
- Resetyes
- DemistDemist by heating the glass
- MaterialADC12
- DimensionsØ220 mm × 382.1 mm (Ø 8.7" × 15.0")
- WeightApprox. 6 kg (13.23 lb.)
- Approval
- Protection IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
