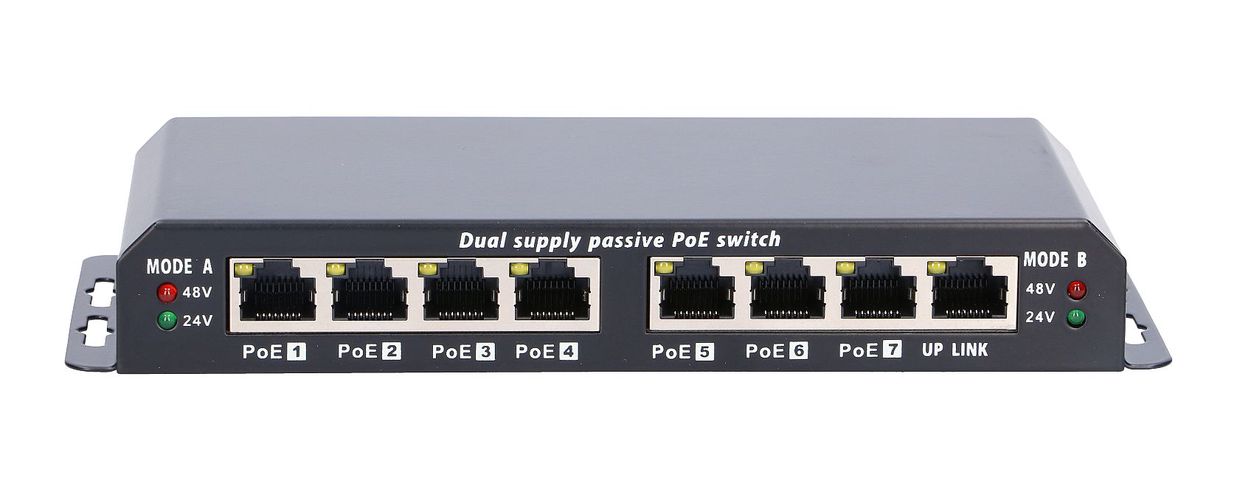

Extralink 8-7 PoE | PoE Switch | 7x 100Mb/s PoE, 1x Uplink RJ45, Power Supply 24V 2.5A, EXTRALINK
Сроки доставки
Товар заказывается со склада поставщика. Если поставщик не сможет доставить данный товар до указанной даты, мы информируем Вас по электронной почте.
 Доступно | Склад поставщика |
Доставка на дом
Доставка на дом
После передачи товара курьеру мы сообщим вам об этом по электронной почте.
Более 25,00 € (Заказы до 1000 кг) | Бесплатно |
К 25,00 € (Заказы до 1000 кг) | 4,50 € |
Получение в почтомате
Получение в почтомате
3,50 €
Описание товара от поставщика
Switch with 7 PoE ports and one 100Mbps Uplink port
It is a switch characterized by high performance and has 8 10/100 Mb/s ports, including 7 ports with PoE support. The switch is powered by an external power supply with from 18V to 57V. The PoE supply voltage depends on the power supply used. The device is designed for home or small business use. It is an inexpensive solution for solutions where power to the devices is not available or too expensive to install.
Main features of the device:
- 8 ports with capacity 10/100Mbps
- Available supply voltages: 18V, 24V, 48V, 56V
- Power input 100 to 240V AC
- The PoE outputs can operate in two modes:
Mode A data and power on pins 1/2 (-) and 3/6 (+),
Mode B power supply on pins 4/5 (+) and 7/8 (-) and data on pins 1/2 and 3/6
- Dual PTC fuses on each PoE output port
- One 650mA fuse per port in mode A
- One 1000mA fuse per port in B mode
- Power inputs for modes A and B with LED
- LED indicates 18/24V or 48/56V operation
- Maximum input current per mode - 2.5 A
| LAN standard | Fast Ethernet 10/100Mb/s |
| Number of LAN ports | 8x 10/100BaseTX (RJ45) |
| Number of PoE ports | 8x [Passive PoE 24V (100M)] |
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Cables included | DC |
| Cloud-managed | No |
| DC input voltage | 18 - 57 |
| Depth | 82 |
| DIN rail mounting | No |
| Fast Ethernet (copper) ports quantity | 8 |
| Height | 27 |
| Housing material | Metal |
| LED indicators | Link, Power |
| MAC address table | 2048 |
| Management | No |
| Networking standards | IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 80 |
| Operating temperature (T-T) | 0 - 40 |
| Power (W) | 90 |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | No |
| Rack mounting | No |
| Rack rails | No |
| Redundant fans support | No |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Switching capacity | 1.2 |
| Switching layer | 2 |
| Temperature sensor | No |
| Type of case | Desktop |
| Weight | 350 |
| Width | 192 |
