Описание товара от поставщика
Product description

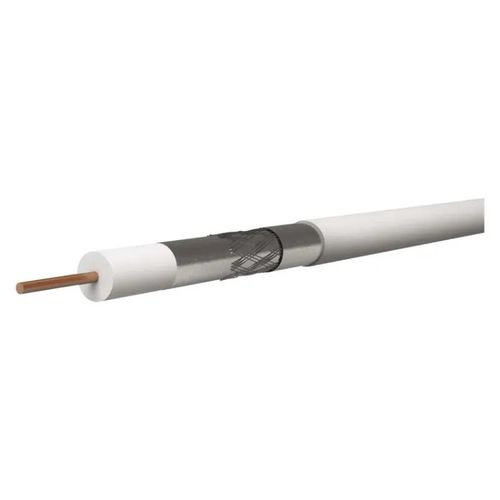

Highest quality coaxial cable with central conductor made of pure bare copper, with triple shielding made of tin-plated CuSn copper, white colour. Designed for all demanding applications for transmitting cable television.
Thanks to the materials used for the central conductor and braiding, the cable is extremely resistant to weather conditions, humidity and corrosion. Ideal for wiring in the house or flat.
Параметры товара поставщика
Product code
S5252
APE = air dielectric
no
capacity (pF/m)
53
coaxial cable type
CB500
color cable sheath > Cable sheath color
white
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
5 mm
diameter of the inner conductor
0.75 mm
dielectric type, diameter
FPE 3.2 mm
factor of shortening
0.85
FPE = Foam dielectric
yes
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
1 000
intended use
CATV distribution
material of the cable jacket
PVC
material of the inner conductor
copper (Cu)
material of the shielding
tinned cooper (CuSn)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
29.1
max. attenuation at 20 °C (dB/100 m) 10 MHz
4.5
max. attenuation at 20 °C (dB/100 m) 100 MHz
10.5
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
no
max. attenuation at 20 °C (dB/100 m) 450 MHz
20.2
max. attenuation at 20 °C (dB/100 m) 650 MHz
24.1
max. attenuation at 20 °C (dB/100 m) 860 MHz
28
max. DC resistance at 20 °C (Ohm/km) - inner core
41.5
max. DC resistance at 20 °C (Ohm/km) - outer core
48.5
min. bend radius single/multiple
25/50 mm
min. return loss at 20 °C (dB) 10 to 300 MHz
25
min. return loss at 20 °C (dB) 600 to 900 MHz
18
min. return loss at 20°C (dB) 300 to 600 MHz
20
min. shielding attenuation (dB) 10 ~ 800 MHz
75
mounting temperature
+5 °C to +60 °C
number of braiding wires
48× 0.12 mm
number of shieldings
3
packaging
100 m, reel
PE = polyethylene dielectric
not stated
PES = layer film
no
reaction to the fire
Eca
recommended types of connectors - F pressing
*K7200
recommended types of connectors - F screwing
*K7321
shielding diameter
48× 0.12 mm²
shielding I. foil
1× Al/PES
shielding II. foil
Al/PES
shielding protection
47 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
no
type of packaging - labeled yardage > Type of packaging - labeled meters
yes
type of packaging - length
100 m
type of packaging - type of coil
paper reel
UV resistant
no
warranty period
5 years
weight (kg/km)
26.5
Brand
EMOS
Supplier's product code
S5252
Product ID
U-2337319
